Technical Review & Analysis
For those prioritizing robust off-grid power and critical battery health, the BougeRV Sunflow 40A MPPT solar charge controller emerges as a compelling option. Its advanced charge management and protective features are designed to maximize energy harvest while safeguarding your valuable battery bank, particularly essential for resilient home energy systems.
Core Specifications

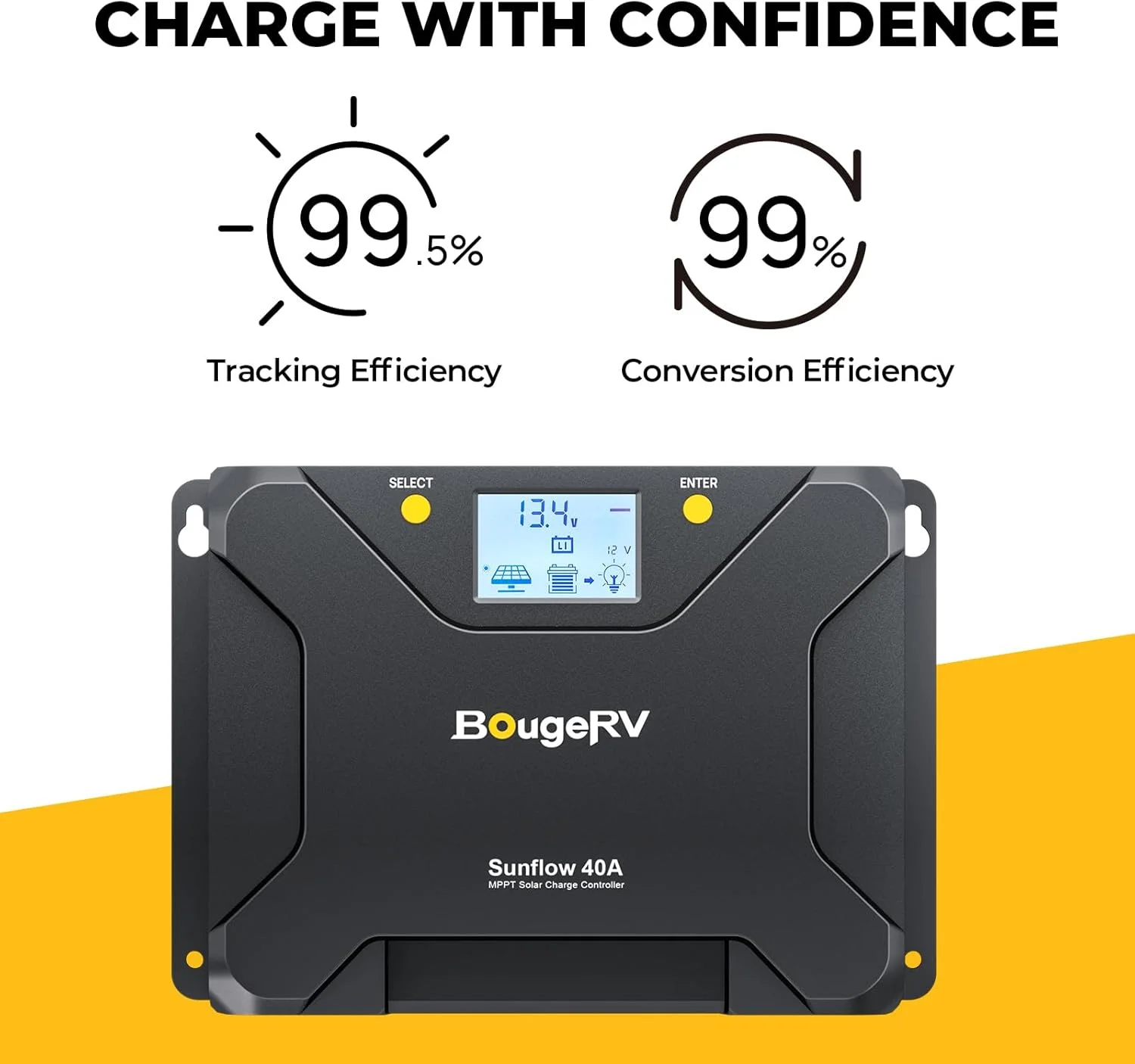

- Maximum Power Point Tracking (MPPT) Efficiency: Up to 99.5% tracking efficiency and 99% peak conversion efficiency, this controller actively optimizes power output from your solar array by precisely identifying the voltage and current at which your panels generate the most wattage, effectively maximizing Watt-hours harvested per day.

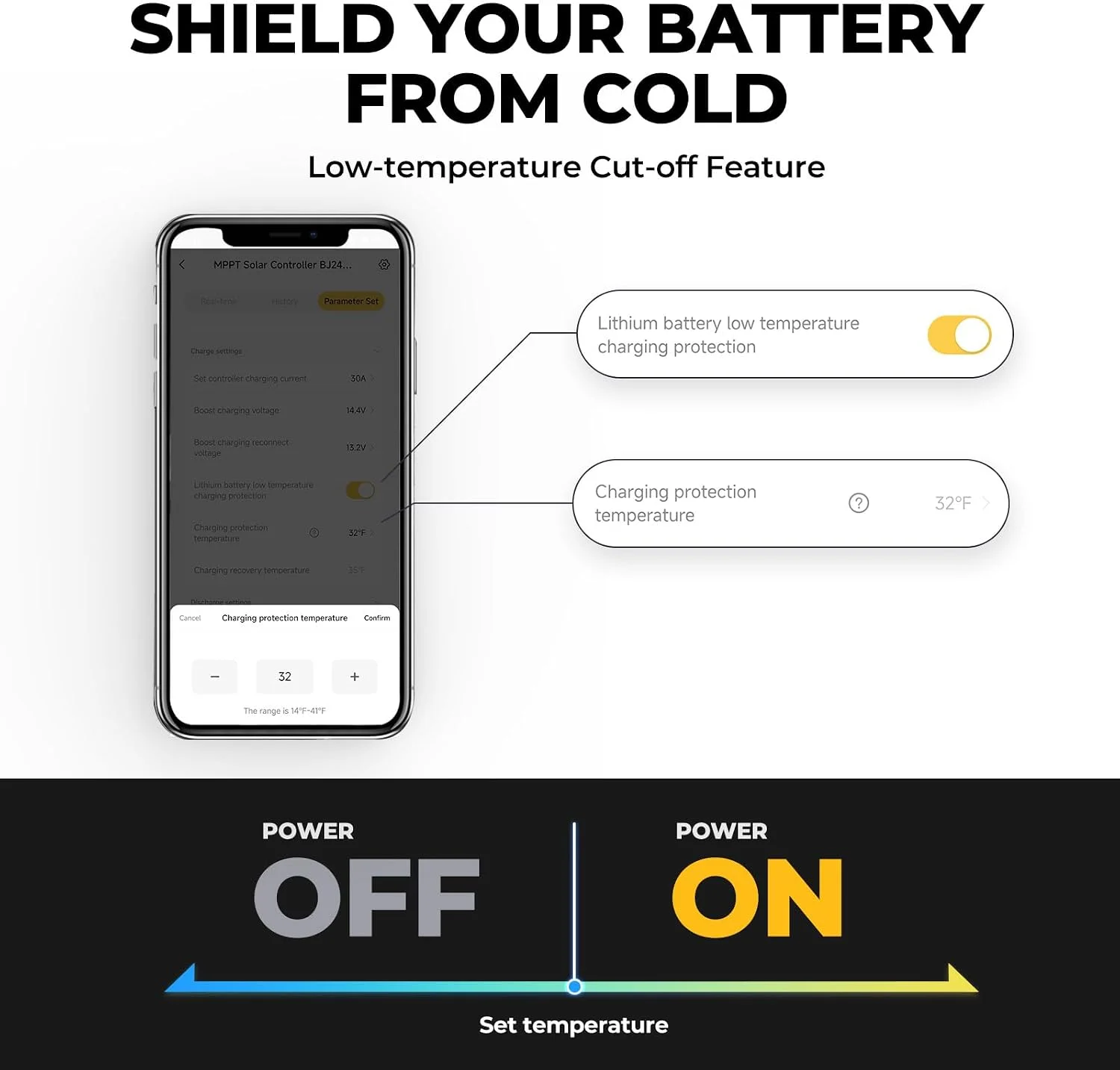

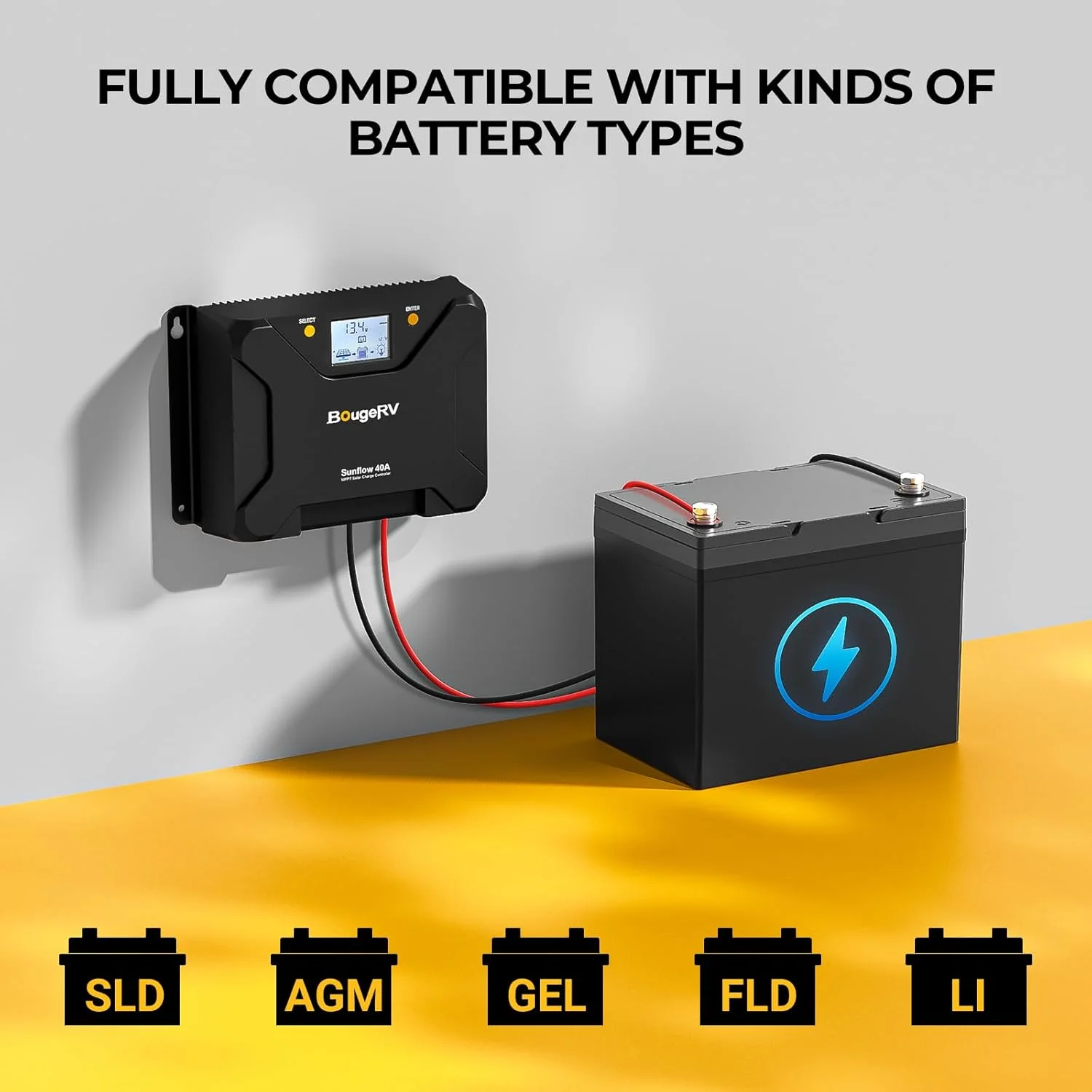

- Battery Compatibility: Fully supports 12V/24V LiFePO4 batteries, including critical low-temperature cut-off charging at or below 32°F to prevent damage, and the ability to restart dormant LiFePO4 batteries that have been shut down due to short circuits or over-discharge conditions. It also accommodates SLD, Gel, FLD, and AGM battery chemistries.

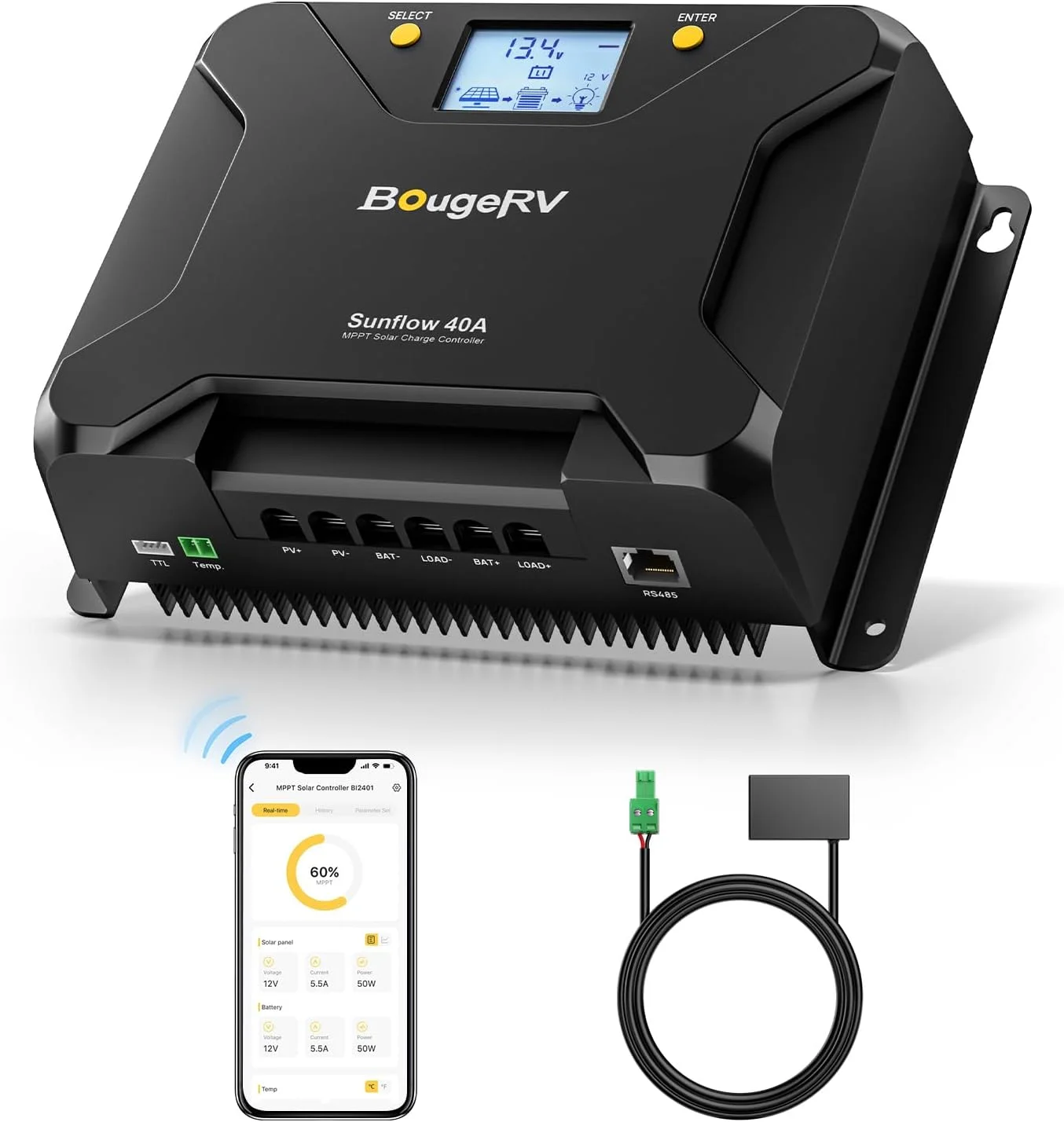

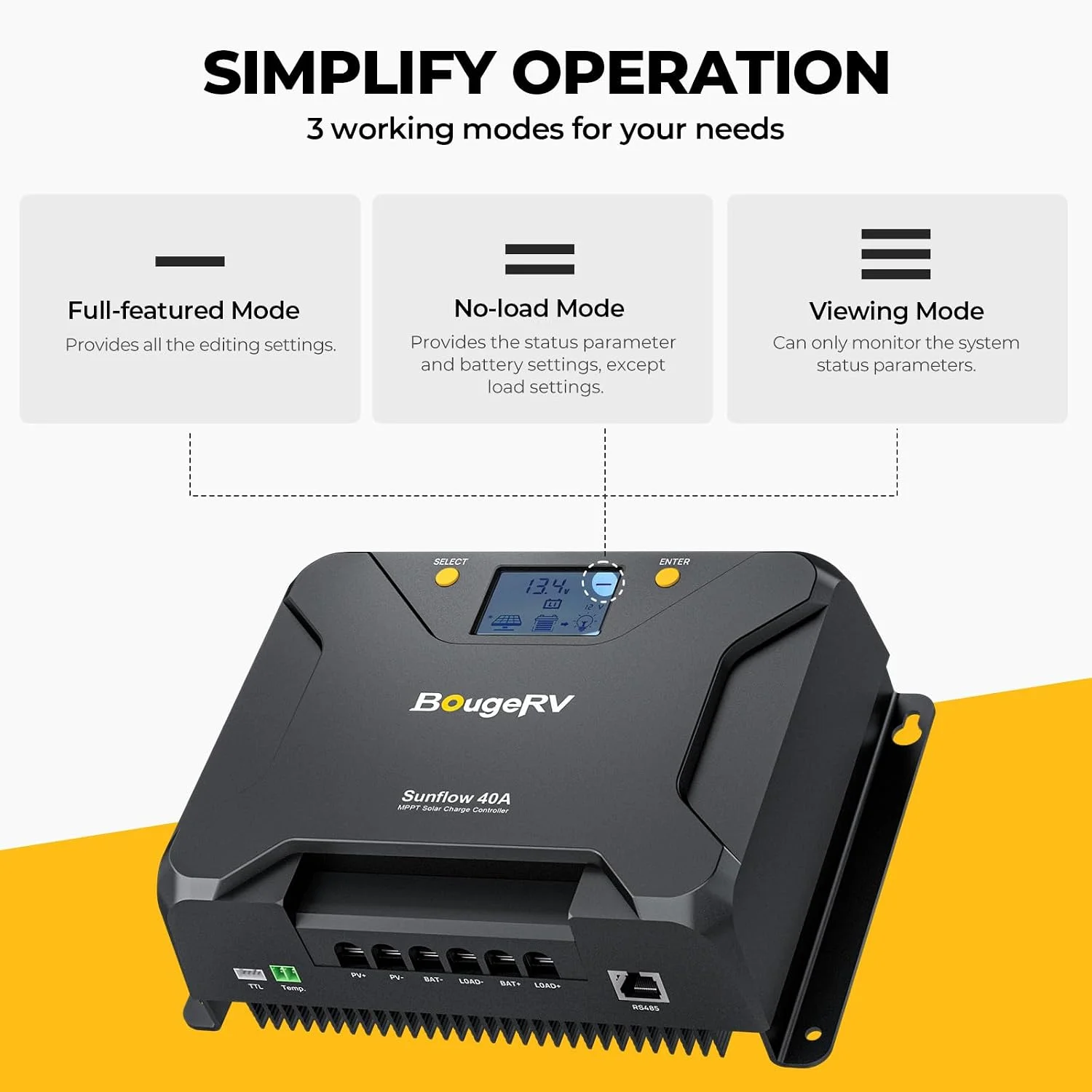

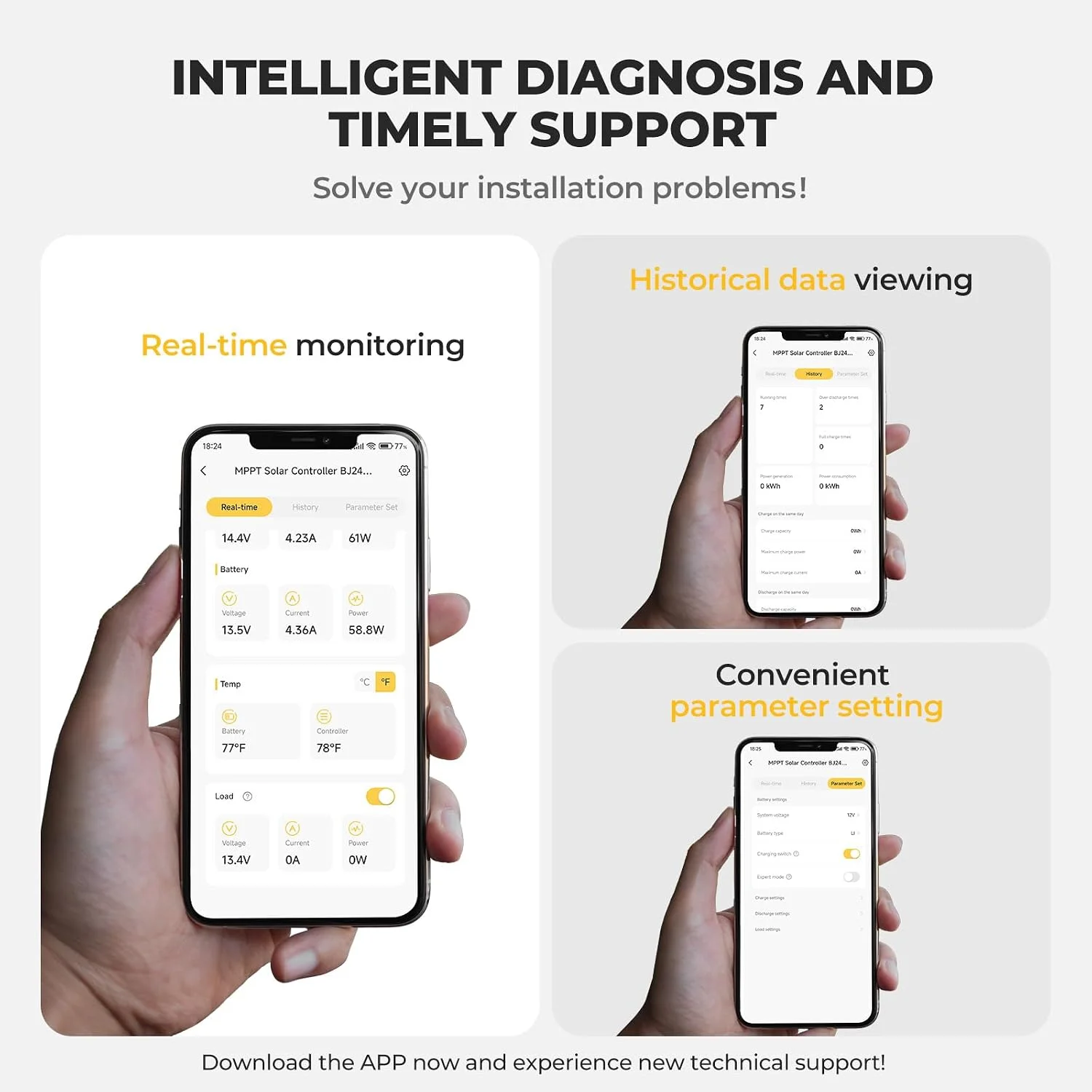

- Connectivity and Control: Features an integrated backlit LCD display offering three operational modes (full-featured, no-load, viewing). Remote management is enabled via Bluetooth connectivity (up to 32 feet) through the “BougeRV” APP, providing real-time monitoring of solar panel, battery, and load status. Full parameter adjustment is available directly on the unit’s screen if app usage is not desired.
- Thermal Management and Protection: Equipped with a high-quality aluminum heat sink for superior heat dissipation, minimizing power loss under full load. It incorporates a dual MOS circuit to prevent reverse current and reduce operational heat, along with six comprehensive protection mechanisms: over-temperature, open-circuit, short-circuit, overload, polarity reverse prevention, and flow backward of current. CE and RoHS certified.
Real-world Reliability
In the context of off-grid power independence, the BougeRV Sunflow 40A MPPT is engineered for sustained performance. Its robust thermal management system, characterized by the aluminum heat sink and dual MOS circuit, is crucial for maintaining operational integrity during prolonged periods of high sunlight and system load, minimizing the risk of overheating and component failure. The inclusion of multiple protective circuits, such as overload and short-circuit prevention, provides a vital layer of defense against power anomalies that could otherwise compromise system stability during critical blackout events or network interruptions affecting monitoring.
Who is this for?
This controller is ideal for RV, marine, and off-grid homestead power systems requiring advanced LiFePO4 battery management and optimized solar energy harvesting.
