Technical Review & Analysis

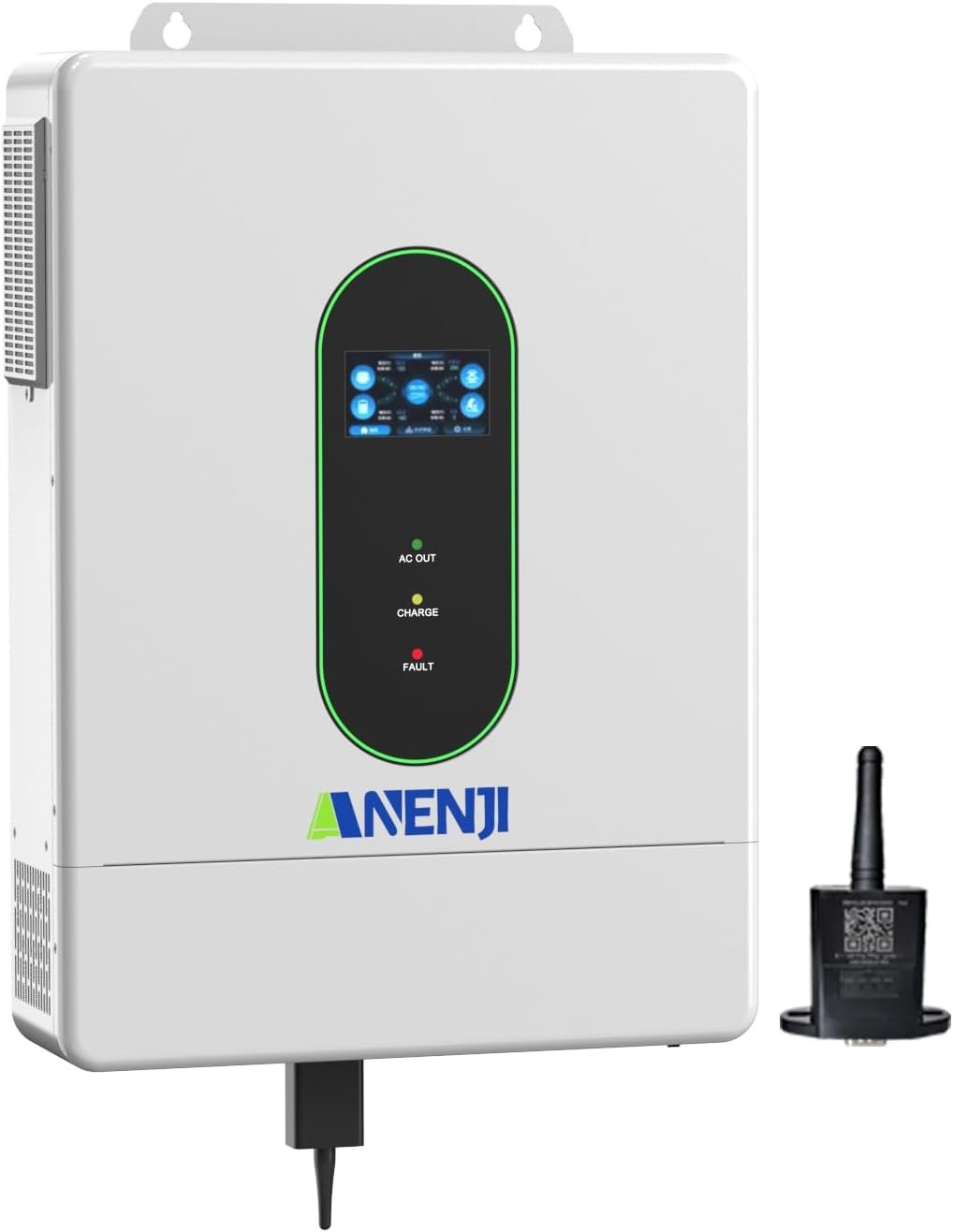

Achieving true energy independence demands robust, intelligent power infrastructure. This 12000W hybrid inverter offers unparalleled grid stability and off-grid resilience, ensuring critical systems remain operational during utility failures or extended off-grid scenarios. Its technical prowess supports seamless energy transitions and comprehensive load management.
Core Specifications
- Output Power & Phase: Delivers a continuous 12000W (12kW) pure sine wave AC output, configurable for 120Vac (L1/N, L2/N) and 240Vac (L1/L2) split-phase operation, essential for standard US residential and light commercial loads.
- DC System Voltage: Operates on a 48V DC battery bank, offering broad compatibility with both lead-acid and lithium battery chemistries. Features an integrated dual lithium battery activation function, triggered by PV or AC mains, to re-energize dormant battery packs.
- Solar Charge Controllers: Equipped with dual Maximum Power Point Tracking (MPPT) channels. Each channel supports a maximum PV array power of 6000W, an open circuit voltage (VOC) up to 500VDC, and an MPPT operating voltage range of 90VDC–450VDC. This optimizes solar energy harvesting from large, independent PV strings.
- Charge Current Capacity: Provides a substantial maximum solar charge current of 200A and an AC charge current of 160A. The combined maximum charge current (PV + AC) is configurable up to 220A, facilitating rapid battery replenishment.
- Operating Flexibility: Supports operation with or without a connected battery bank. In battery-less mode, loads can be powered directly from the PV array and/or the AC grid, provided the minimum PV operating voltage of 90VDC is met.
- Scalability: Designed for parallel operation, allowing up to six units to be synchronized. This enables a potential system expansion to a formidable 72kW continuous output, suitable for high-demand applications.
- Monitoring & Control: Features an integrated OLED light-touch touchscreen for intuitive local configuration and status monitoring. Optional WiFi/GPRS modules are available for comprehensive remote monitoring and control capabilities.
- Output Priority Modes: Offers configurable AC output priority modes, including Utility Priority (Line), Battery Priority (Bat), and Solar Priority (Solar), granting precise control over power source utilization to optimize for cost or energy independence.
Real-world Reliability
In scenarios of grid instability or complete blackouts, this inverter’s rapid transfer capability, coupled with its flexible power source prioritization, ensures seamless transition to stored battery power or direct solar feed, maintaining continuous power to critical loads. The robust 12kW continuous output provides ample headroom, while the dual MPPTs consistently harvest optimal energy from diverse solar conditions. Its ability to operate without a battery bank further enhances resilience, providing daytime power directly from PV during extended outages irrespective of battery state-of-charge.
Who is this for?
This system is engineered for off-grid homesteads, large residential backup systems, or commercial applications demanding reliable, scalable power independence.
