Technical Review & Analysis
In an era where grid instability is a growing concern, robust power independence is no longer a luxury but a critical component of smart home security. The ability to autonomously manage solar energy input, ensuring uninterrupted power to essential systems, defines true resilience.

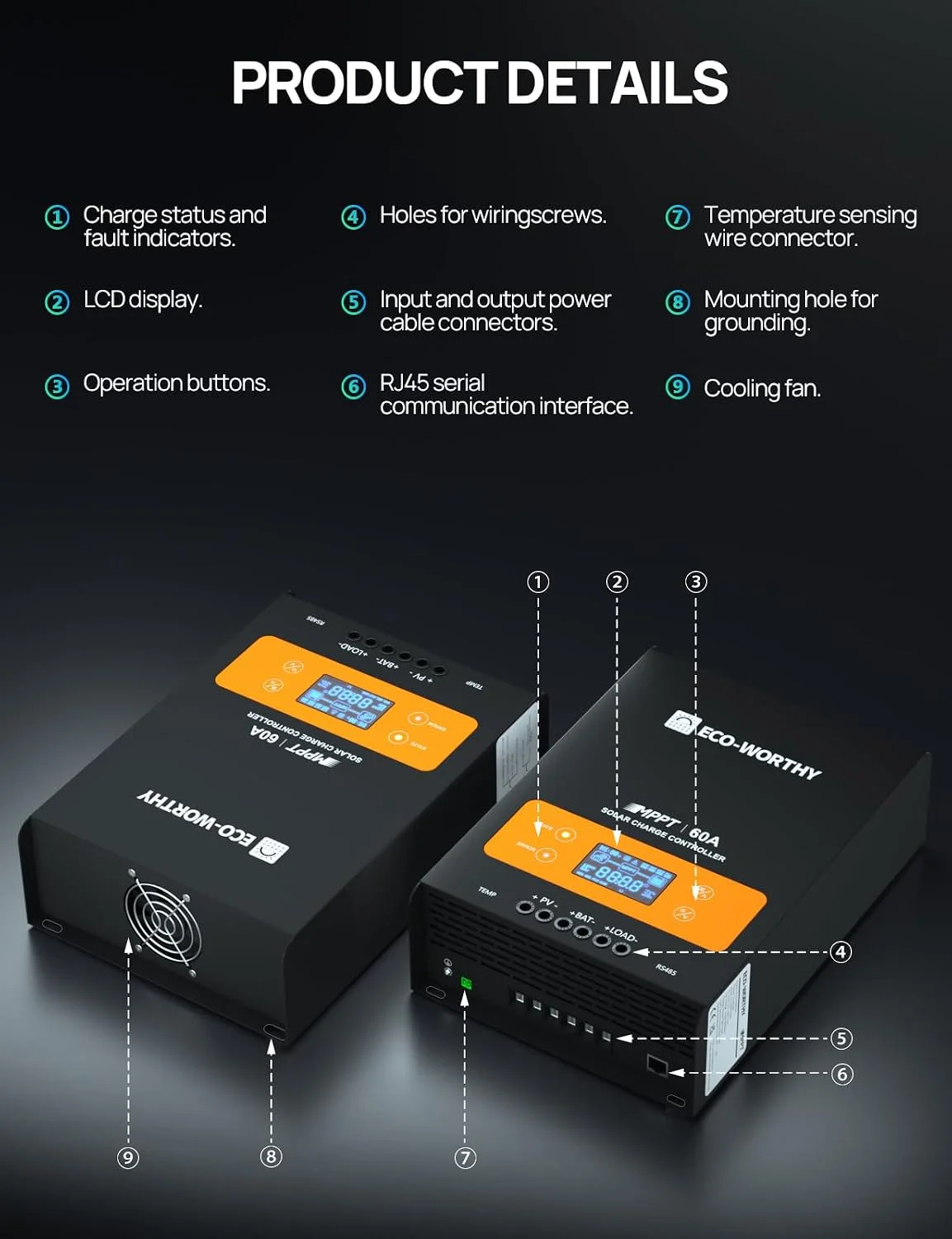

Core Specifications

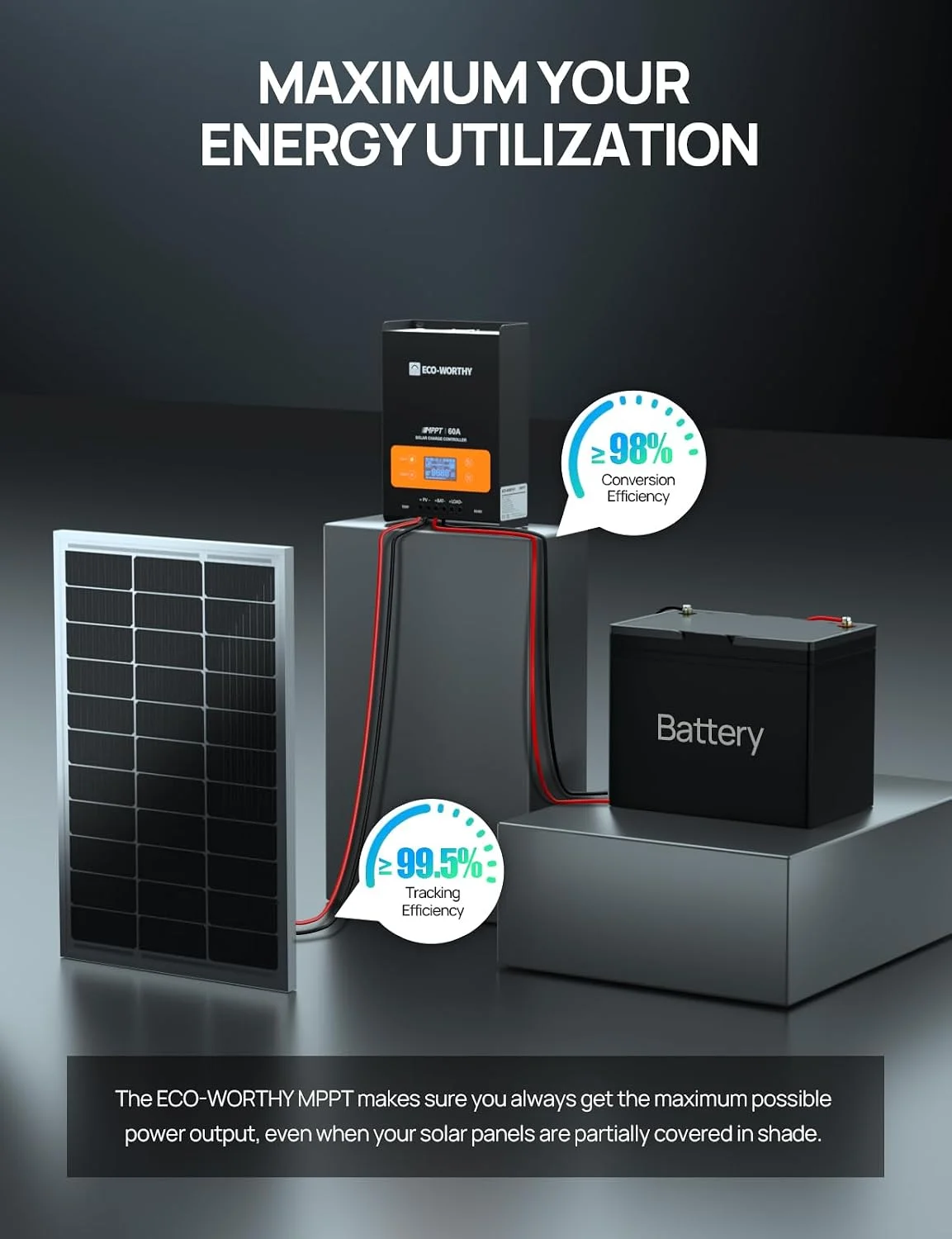

- MPPT Efficiency: Boasts a 99.5% Maximum Power Point Tracking efficiency, with a peak conversion efficiency of 98%. This ensures optimal energy harvest from solar arrays, even under variable irradiance conditions, translating directly to maximum Watt-hour capture.

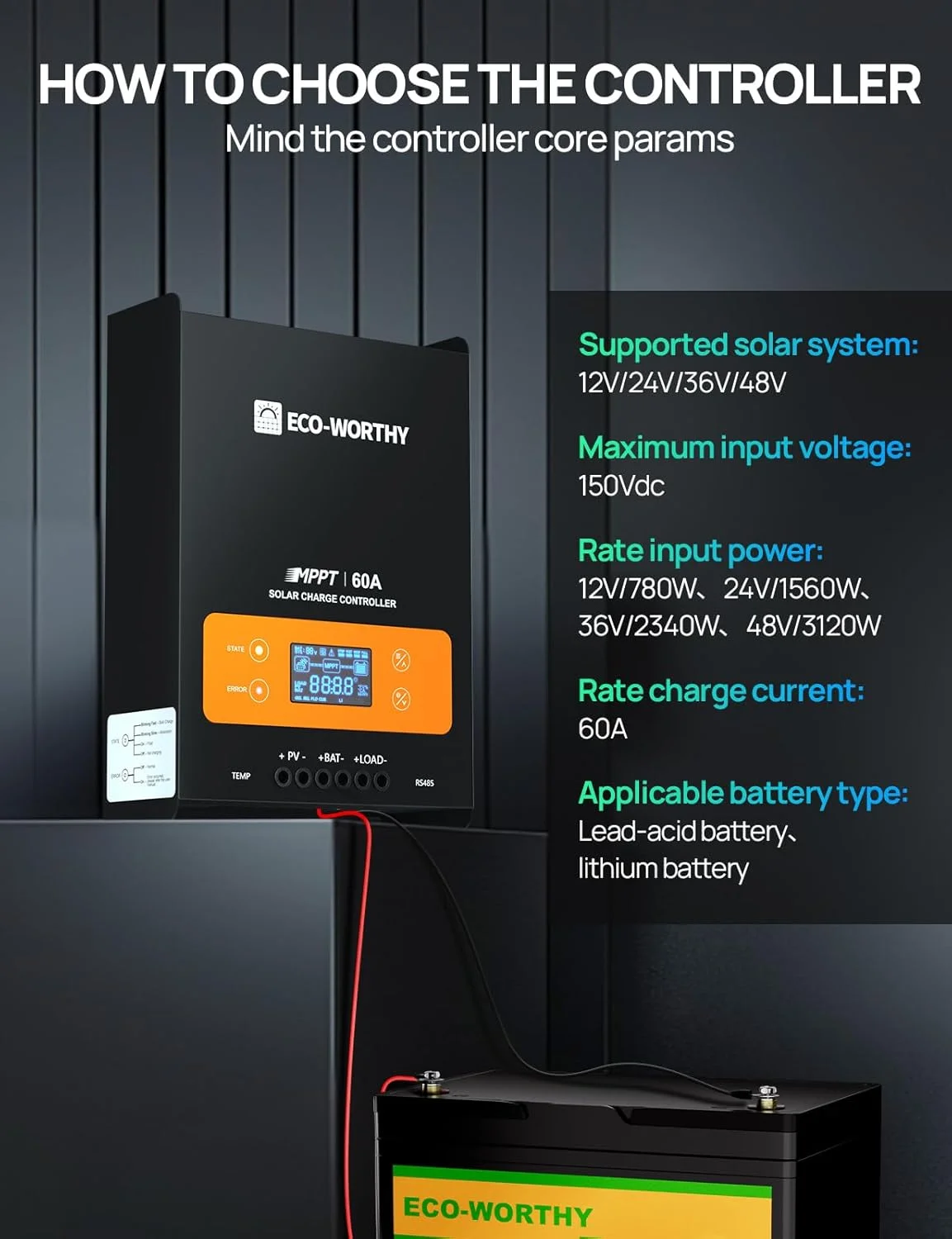

- System Voltage & Current: Automatically detects 12V, 24V, 36V, or 48V DC system voltages. It handles a substantial rated charging current of 60A, supporting PV input up to 150V, making it suitable for significant solar panel configurations.

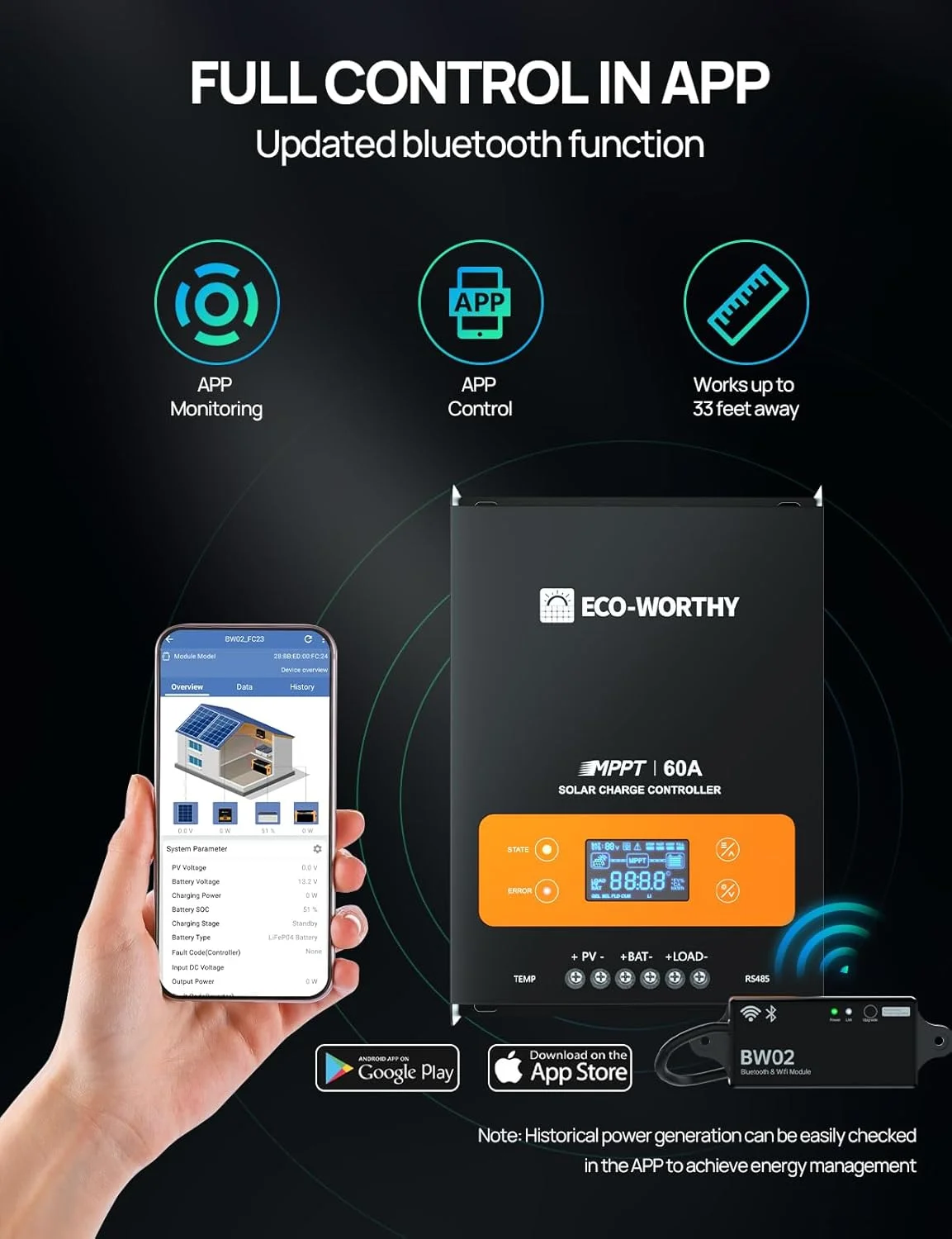

- Connectivity & Monitoring: Features an integrated Bluetooth and WiFi module. Bluetooth facilitates local real-time monitoring and parameter customization within a 33-foot radius via a dedicated application. WiFi extends this capability to long-distance monitoring, allowing performance history (30 days) and system status checks remotely. This robust connectivity is crucial for proactive system management.

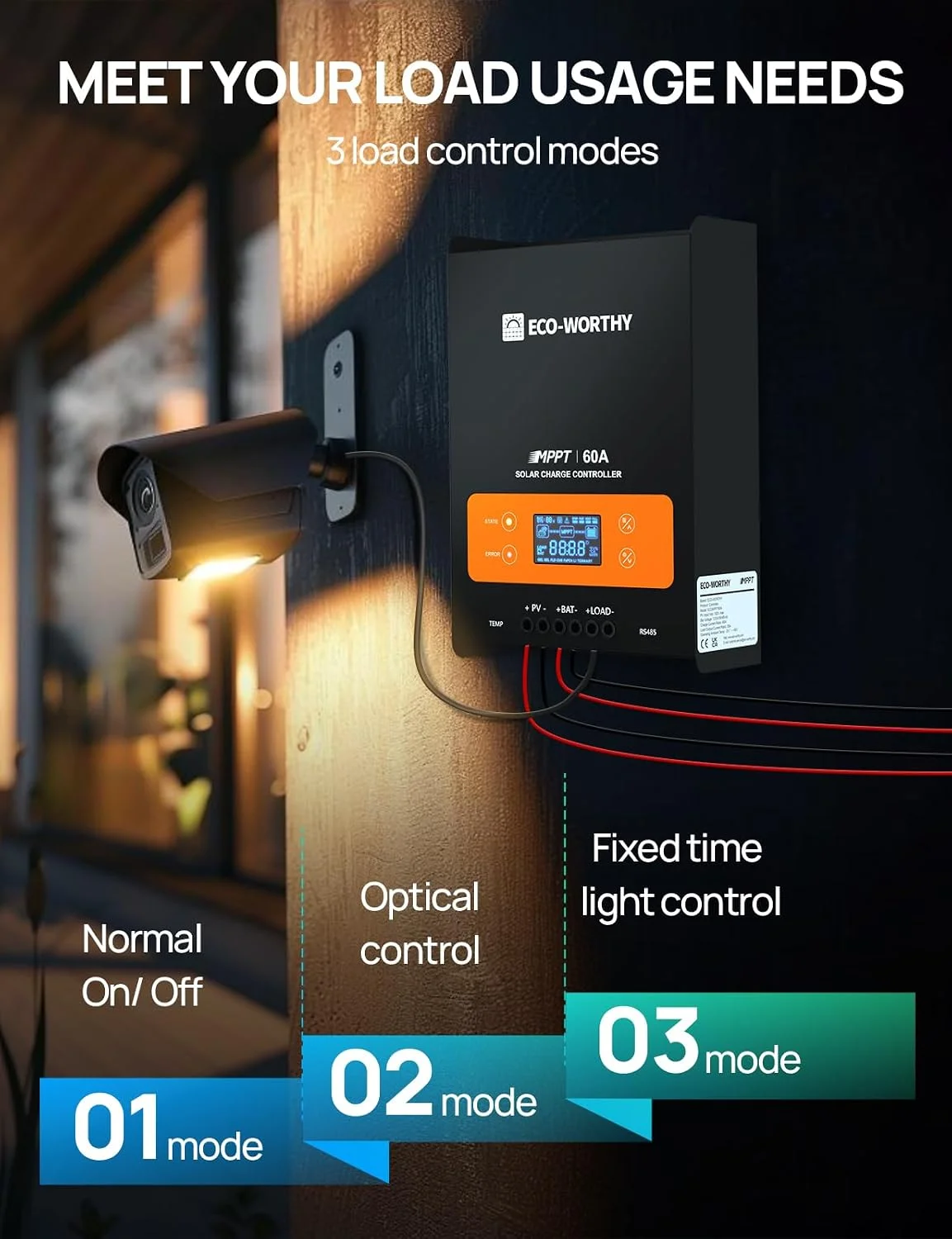

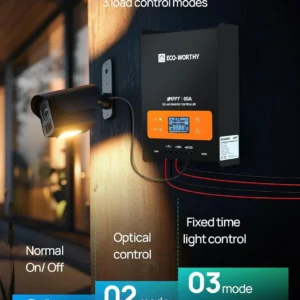

- Load Management: Provides four distinct DC load control modes: Normal On/Off, Optical Control (dawn/dusk sensing), Dual-Period Timing Control, and Fixed Time Light Control. This flexibility allows for precise power delivery scheduling to various DC loads without requiring external relays.

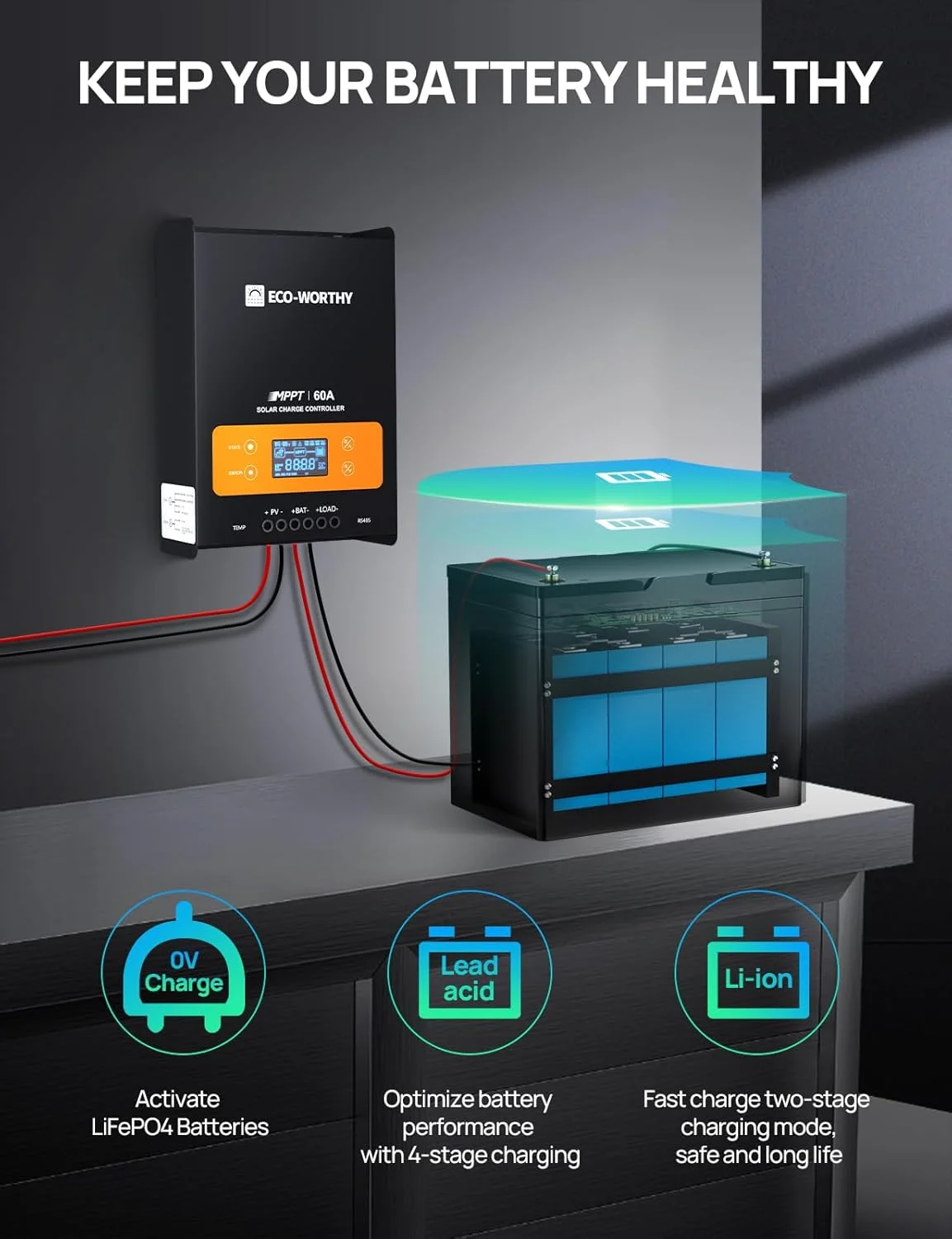

- Battery Compatibility: Engineered for both lead-acid and LiFePO4 battery chemistries. It implements a 4-stage charging protocol for lead-acid batteries and a 2-stage cycle, including an essential activation function, for LiFePO4 cells, ensuring extended battery longevity and health.

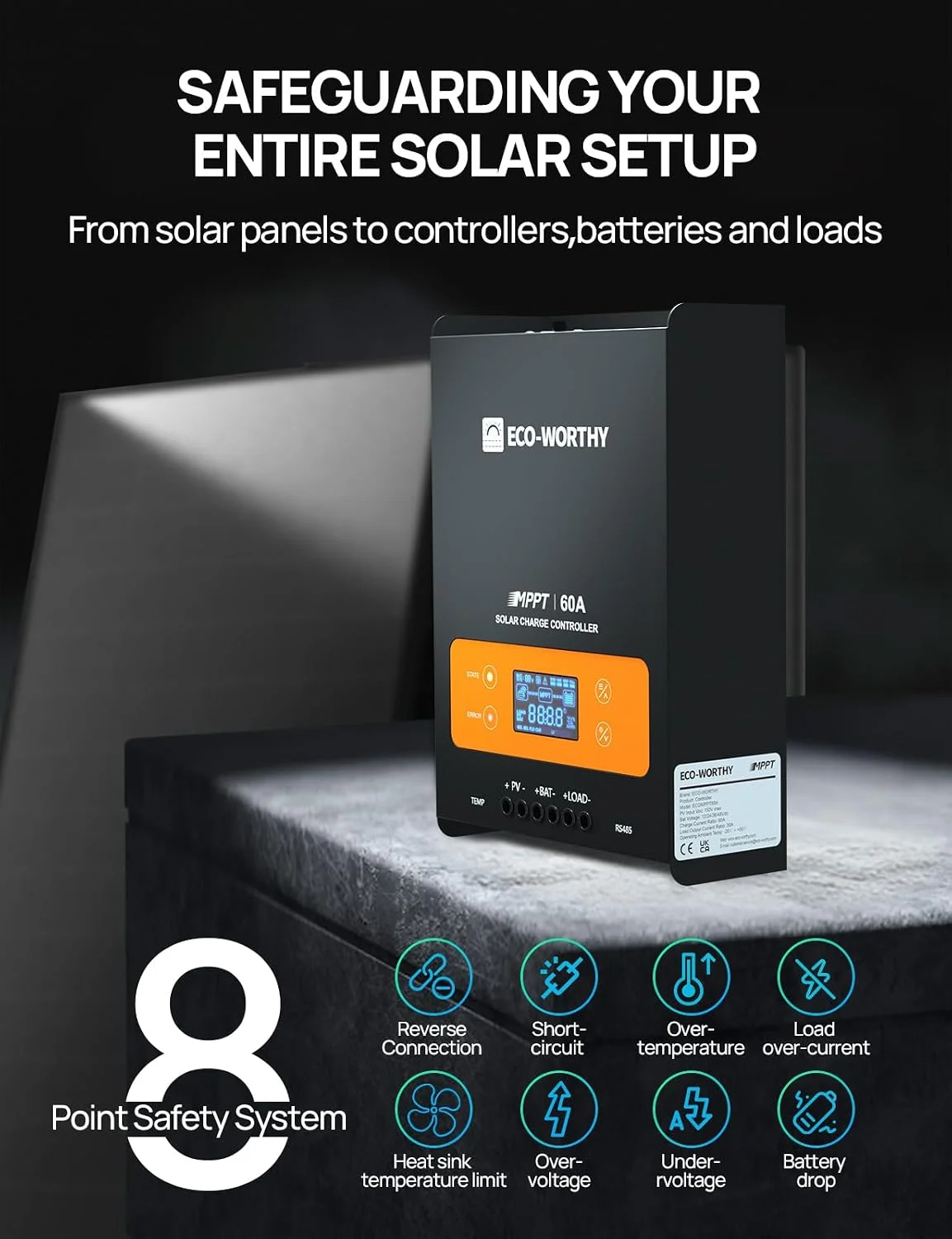

- Integrated Protection: Features comprehensive safety mechanisms, including anti-reverse connection, short circuit protection, and high-temperature shutdown, safeguarding both the controller and connected components against common electrical faults. A backlit LCD provides immediate operational data and status indicators.
Real-world Reliability
For critical off-grid or grid-tied backup systems, this controller’s robust MPPT and reliable charging algorithms are paramount. During grid blackouts, its efficient power harvest ensures essential loads remain energized. The dual Bluetooth/WiFi connectivity provides crucial out-of-band monitoring capabilities, allowing system administrators to assess performance and troubleshoot remotely, even if local network infrastructure is compromised. Its built-in protections against common electrical disturbances ensure continuous, stable operation, mitigating risks associated with extreme weather or fluctuating grid conditions.
Who is this for?
This unit is ideal for RV owners, remote cabin installations, or suburban homesteads seeking advanced off-grid power autonomy and robust battery management.
