Technical Review & Analysis

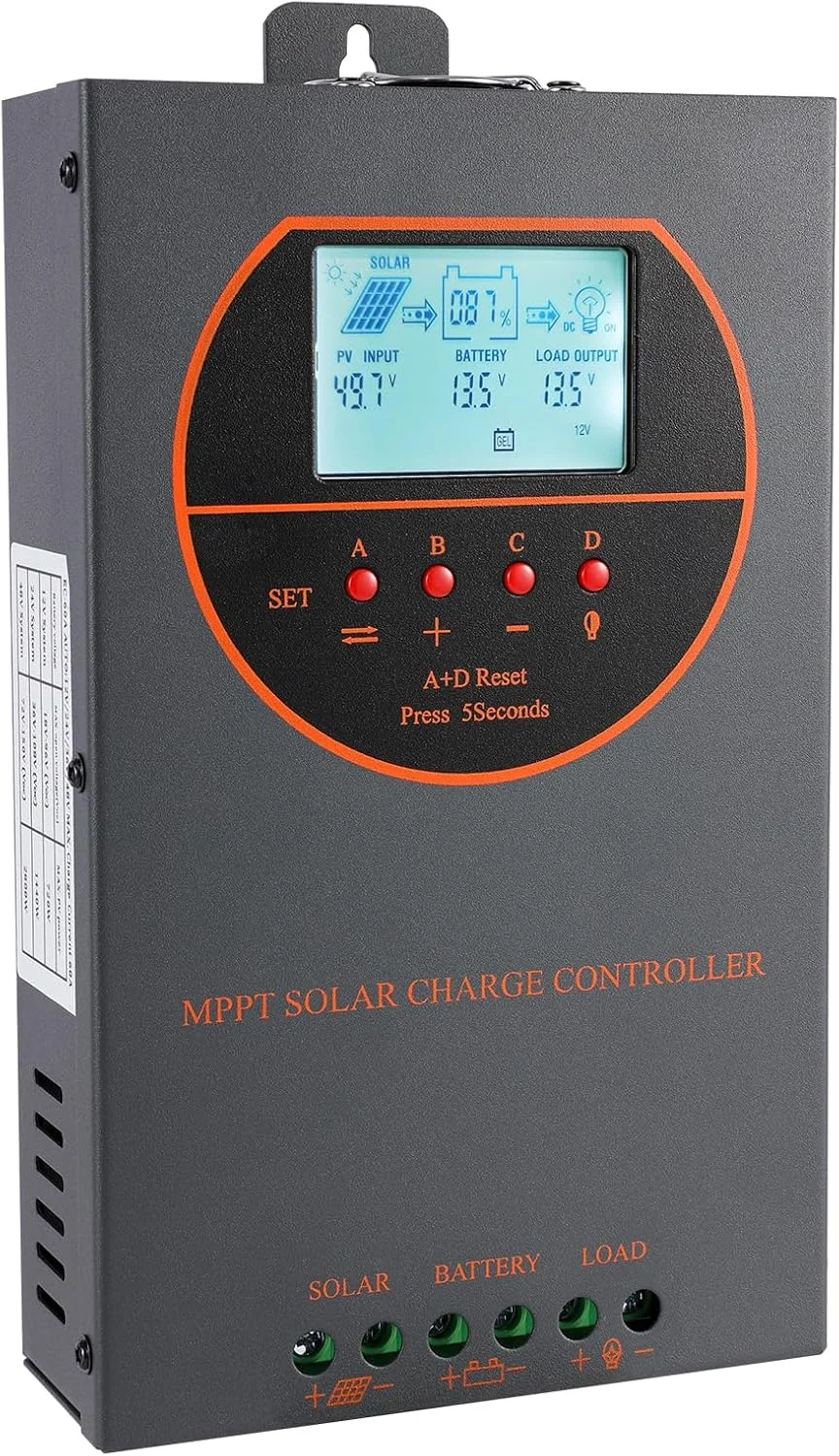

Maintaining power autonomy is paramount in any robust smart home or off-grid setup. A reliable solar charge controller forms the bedrock of such systems, ensuring efficient energy harvest and battery longevity. The OOYCYOO 40A MPPT controller steps into this critical role, promising sophisticated power management for a range of photovoltaic applications.
Core Specifications
- Rated Charging Current: Provides a substantial 40 Amperes of charging current, making it suitable for mid-sized battery banks.

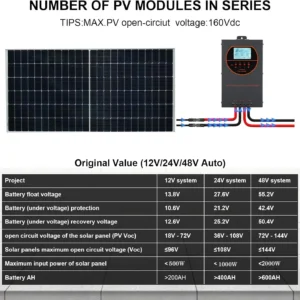

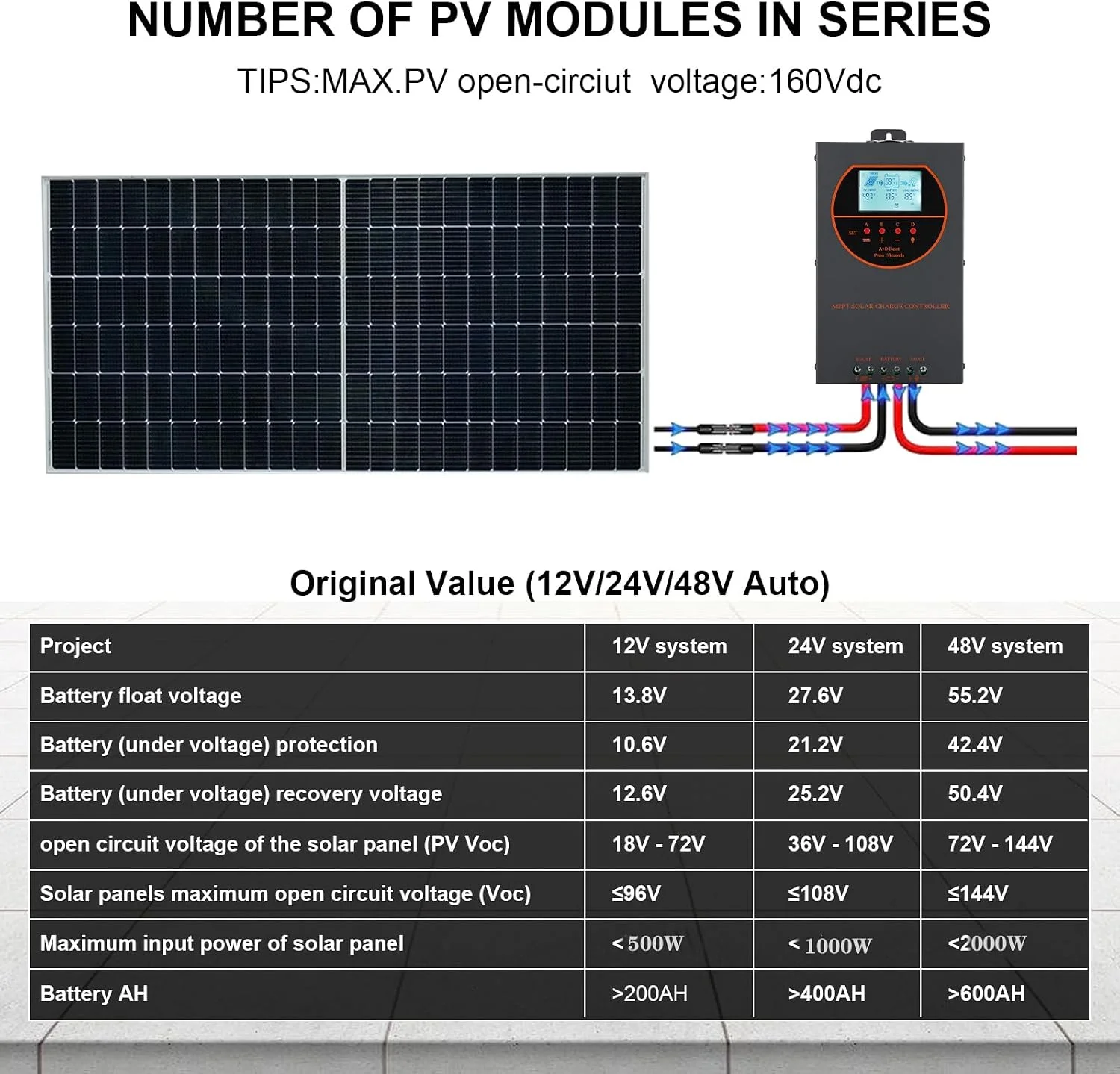

- PV Input Voltage Range: Supports a maximum open-circuit solar array voltage (Voc) of 160V DC, allowing for flexible string configurations. Optimal operating voltage ranges are specified: DC20V-DC80V for 12V battery systems, DC37V-DC105V for 24V, DC50V-DC160V for 36V, and DC72V-DC160V for 48V systems.

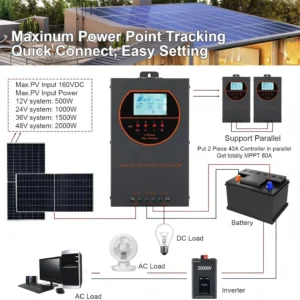

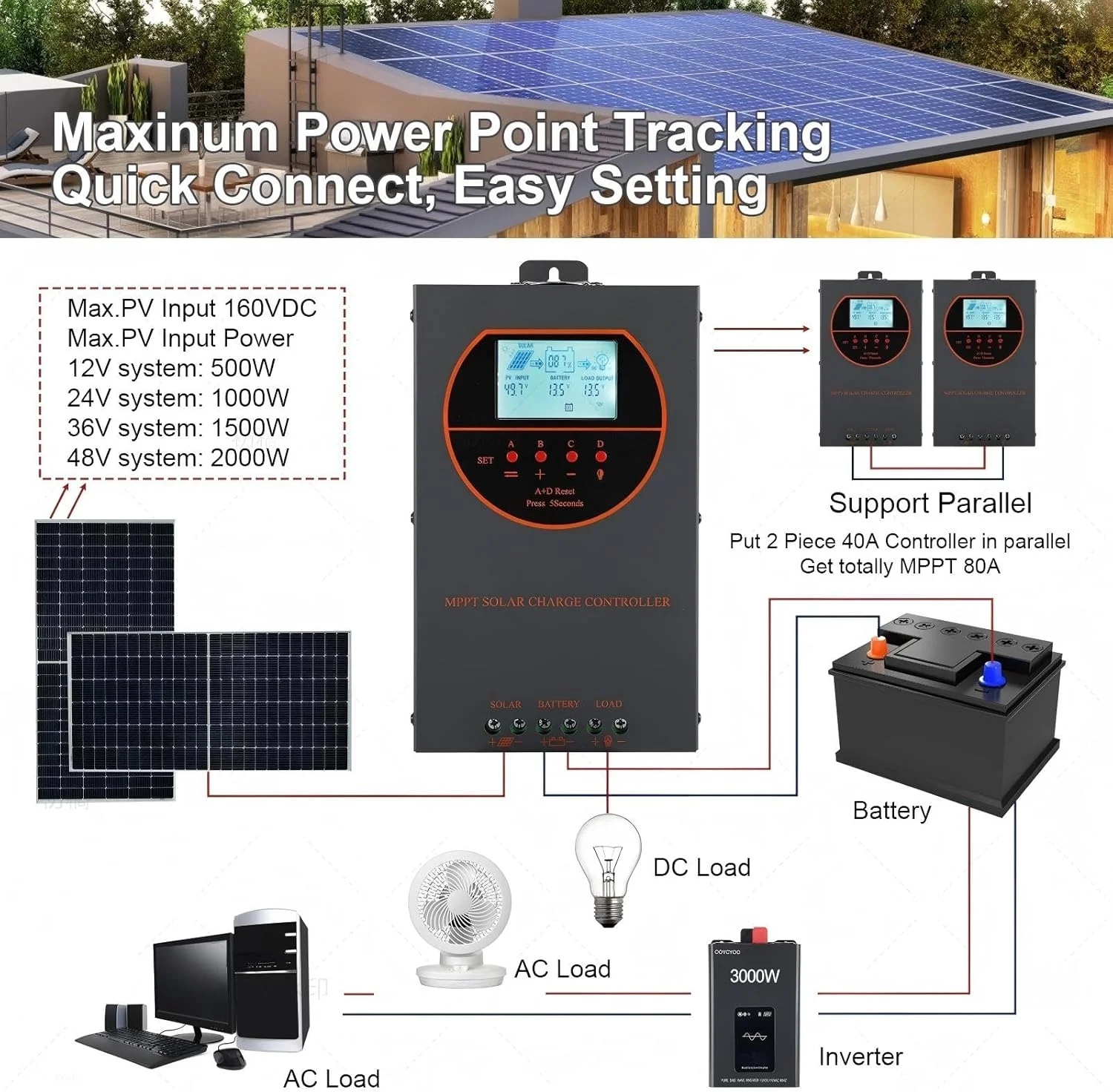

- Maximum PV Input Power: Capable of handling significant solar input: 500W for 12V systems, 1000W for 24V systems, 1500W for 36V systems, and 2000W for 48V systems. This translates to efficient energy harvesting, potentially delivering 2000Wh per hour under optimal 48V conditions.
- Battery System Voltage: Features automatic recognition and compatibility with 12V, 24V, 36V, and 48V battery banks, offering broad system integration.
- Battery Chemistry Compatibility: Pre-set charging parameters for a comprehensive range of battery types including Sealed, Gel, Flooded lead-acid, and Lithium (specifically LFP chemistry). Custom user-defined parameters are also supported for precise battery management.

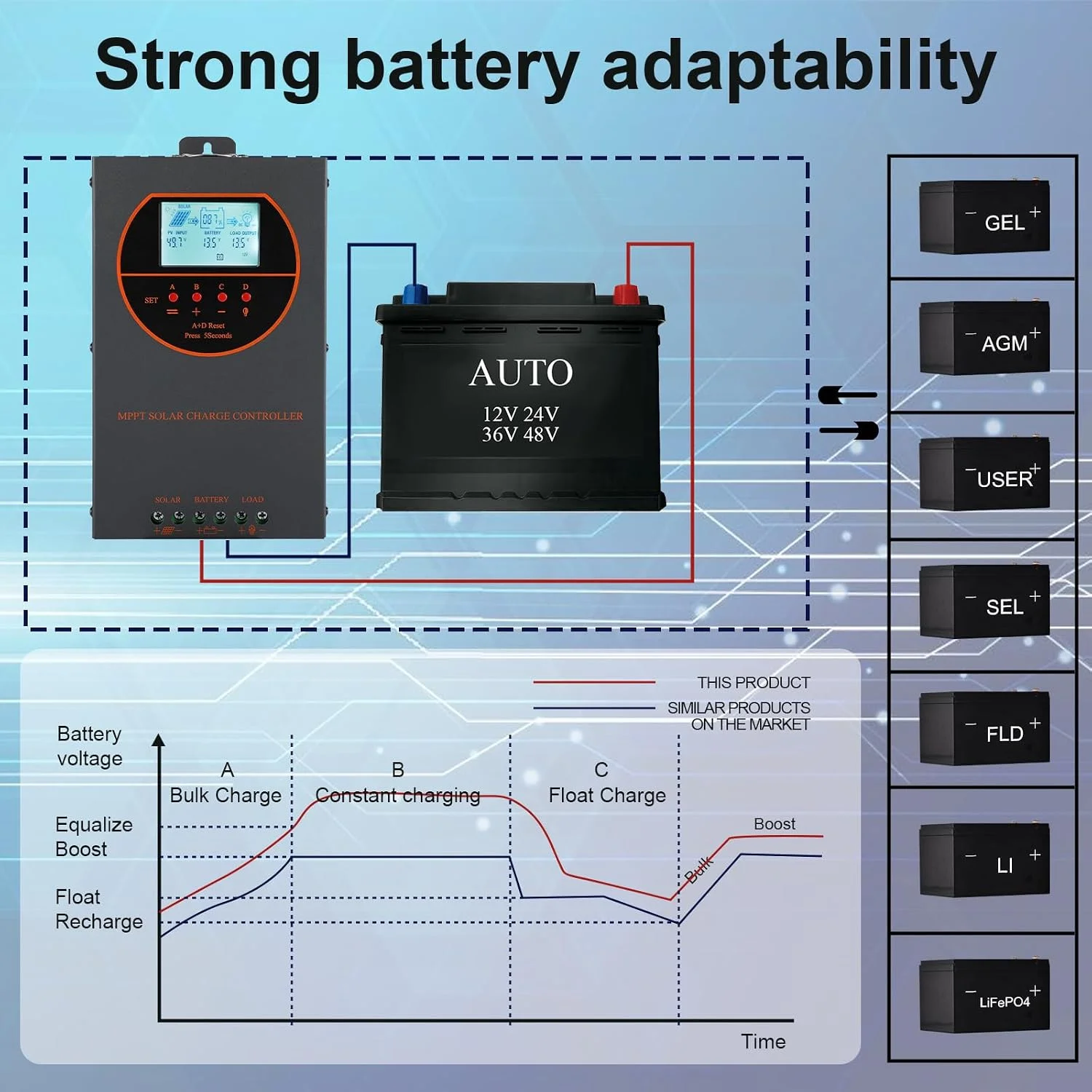

- Charging Algorithm: Utilizes an advanced 4-stage charging process (Bulk Charge, Boost Charge, Float Charge, and Equalization) designed for optimal battery health, extended lifespan, and rapid charging.

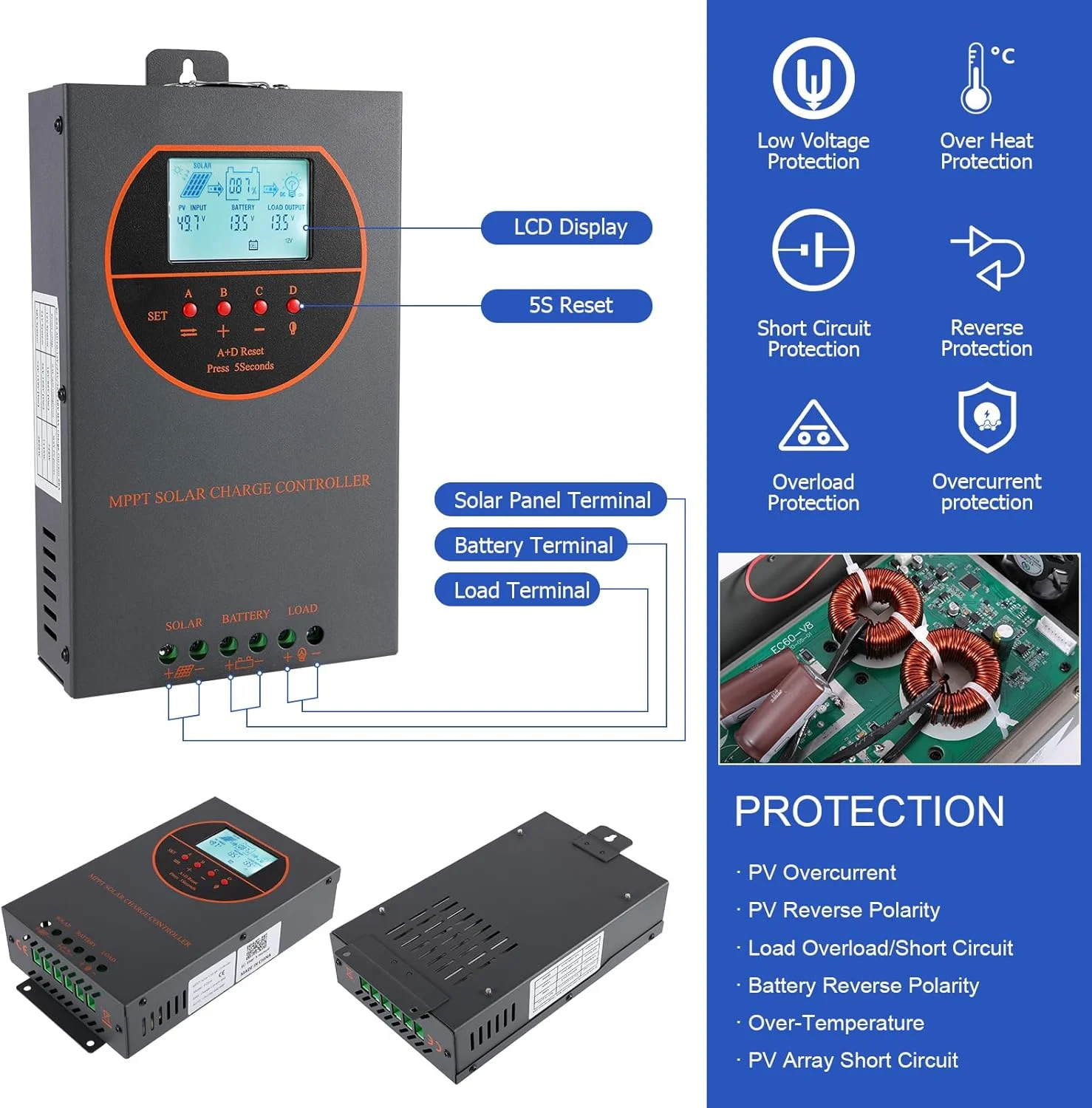

- Grounding Design: Features a negative grounding design, enhancing system safety by providing a common reference for electrical potential.
- MPPT Tracking Efficiency: Employs advanced Maximum Power Point Tracking (MPPT) technology, achieving a tracking efficiency of not less than 98.1%, ensuring maximum power extraction from the solar array.
- Peak Conversion Efficiency: Demonstrates a high power conversion efficiency of up to 98% from the solar array to the battery, minimizing energy losses during the conversion process.
- Thermal Management: Incorporates a robust die-cast aluminum chassis for effective passive heat dissipation. Active cooling is provided by a built-in fan, which activates at temperatures >45°C and deactivates at <40°C. This fan utilizes bearing technology, rated for a lifespan of up to 5000 hours under normal operating conditions, ensuring sustained performance.
Real-world Reliability
For true off-grid resilience or critical backup power, a charge controller’s ability to operate under duress is non-negotiable. The OOYCYOO 40A’s die-cast aluminum construction, combined with its intelligently controlled active fan cooling, provides a strong foundation for sustained performance even when ambient temperatures climb, mitigating the risk of thermal derating or premature component failure during prolonged solar harvest periods. This robust thermal engineering is crucial for maintaining power delivery during extended grid outages or in environments with fluctuating climatic conditions, ensuring consistent energy flow to critical loads.
Who is this for?

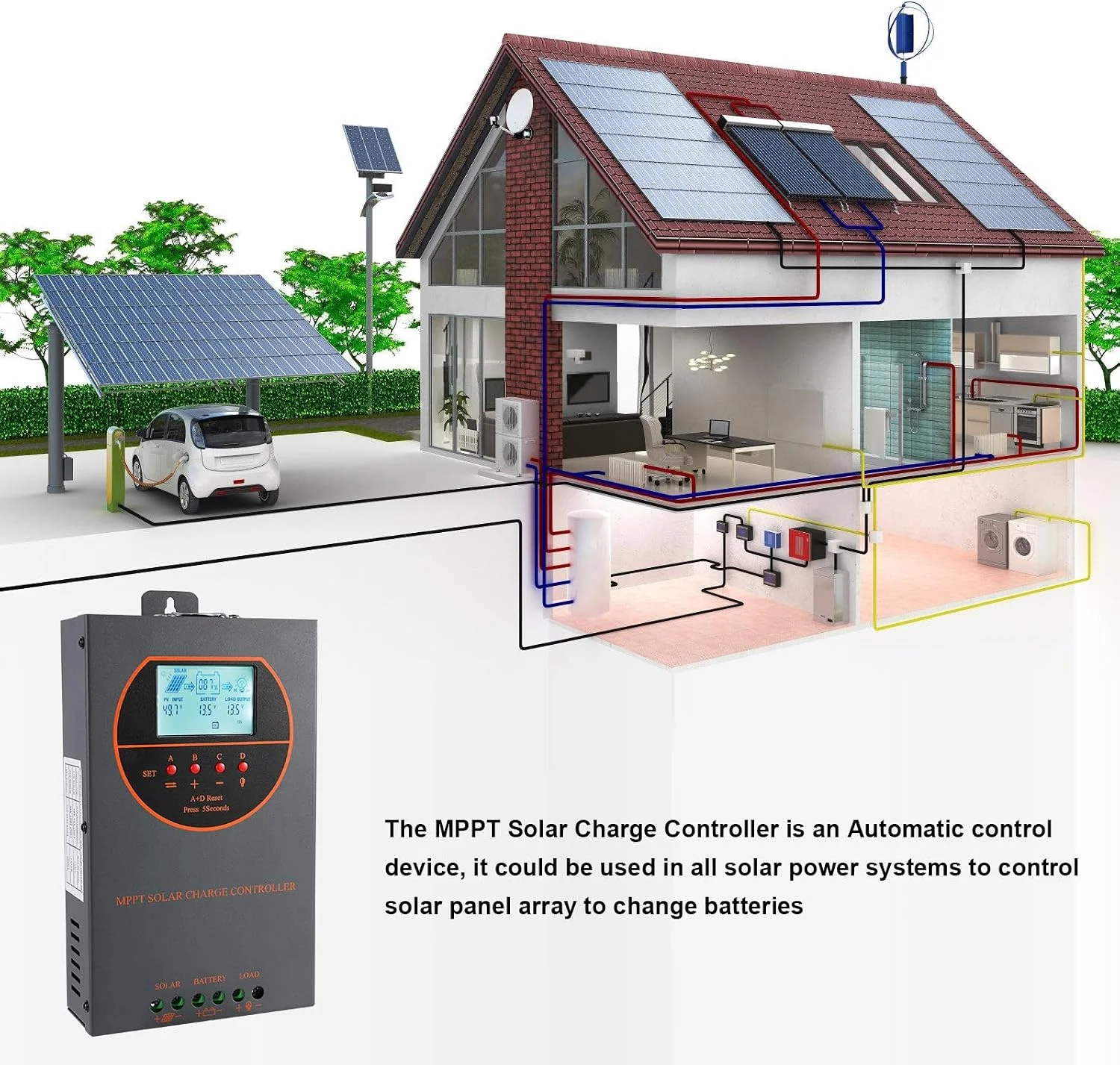

This controller is ideal for small to medium-scale off-grid cabins, RVs, and suburban homesteads requiring reliable battery charging from a photovoltaic array.
