Technical Review & Analysis

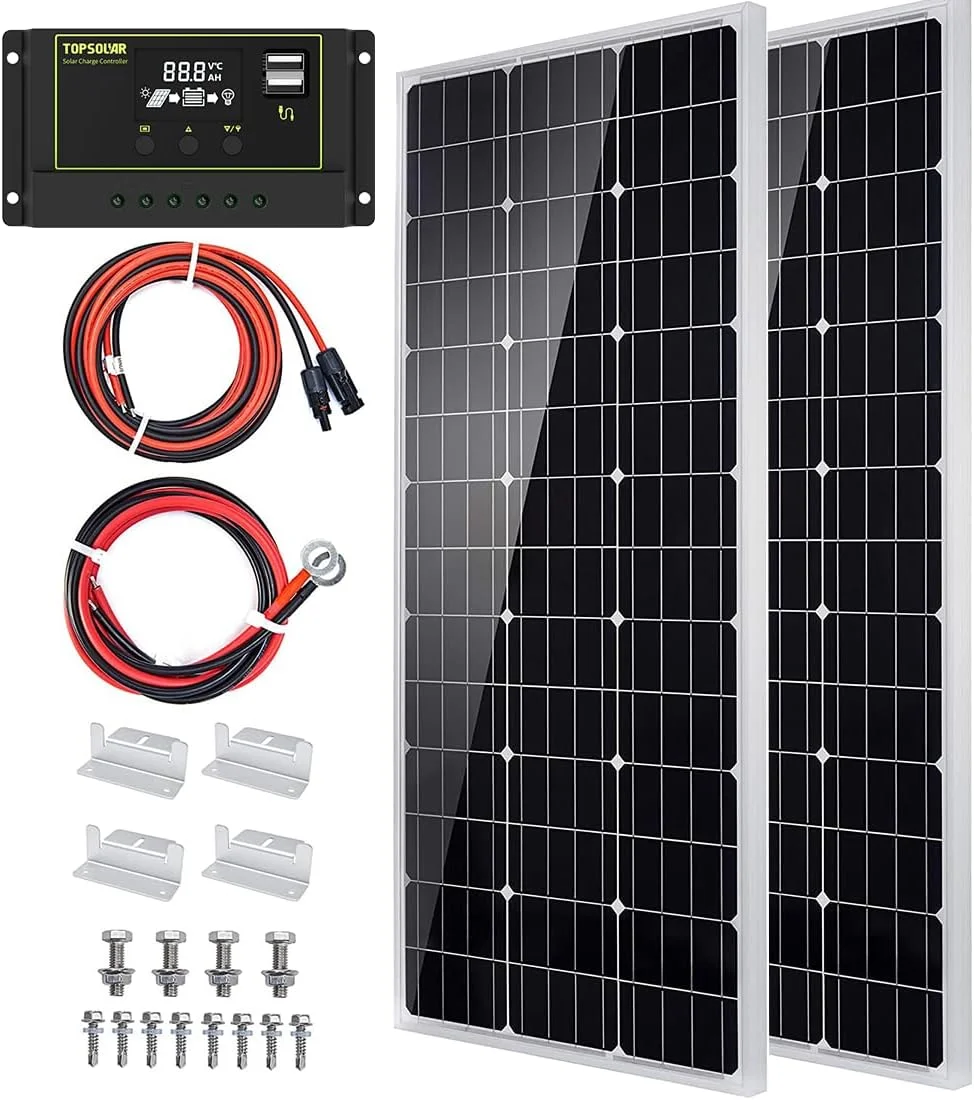

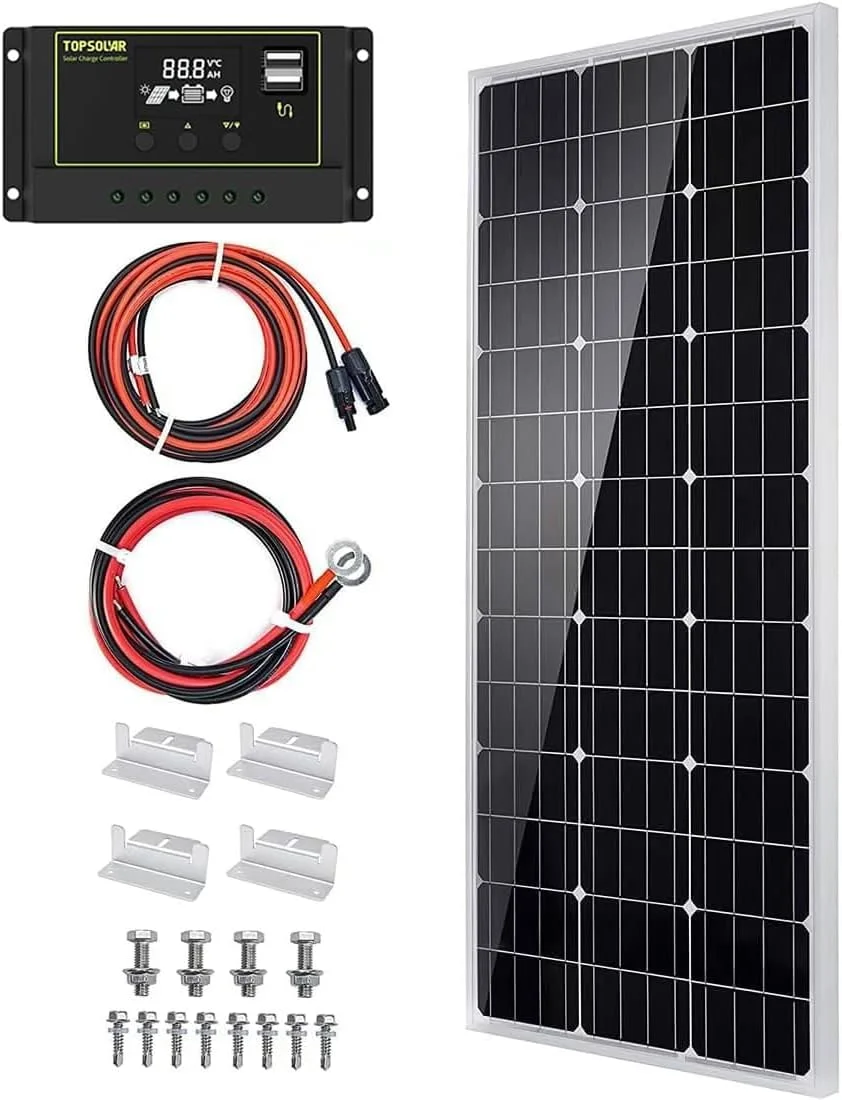

In an era where grid stability is increasingly tenuous, ensuring continuous power for critical smart home and security infrastructure is paramount. The Topsolar 100W Monocrystalline Solar Panel Kit offers a fundamental step towards energy independence, providing a reliable power source for essential low-power off-grid applications or supplementary charging.
Core Specifications
- Nominal Power Output: A 100-watt monocrystalline panel (Vmp: 23V, Imp: 4.3A) provides a theoretical peak energy harvest. Under ideal conditions (5 peak sun hours), this translates to approximately 500 Watt-hours (Wh) daily, suitable for maintaining smaller 12V battery banks.

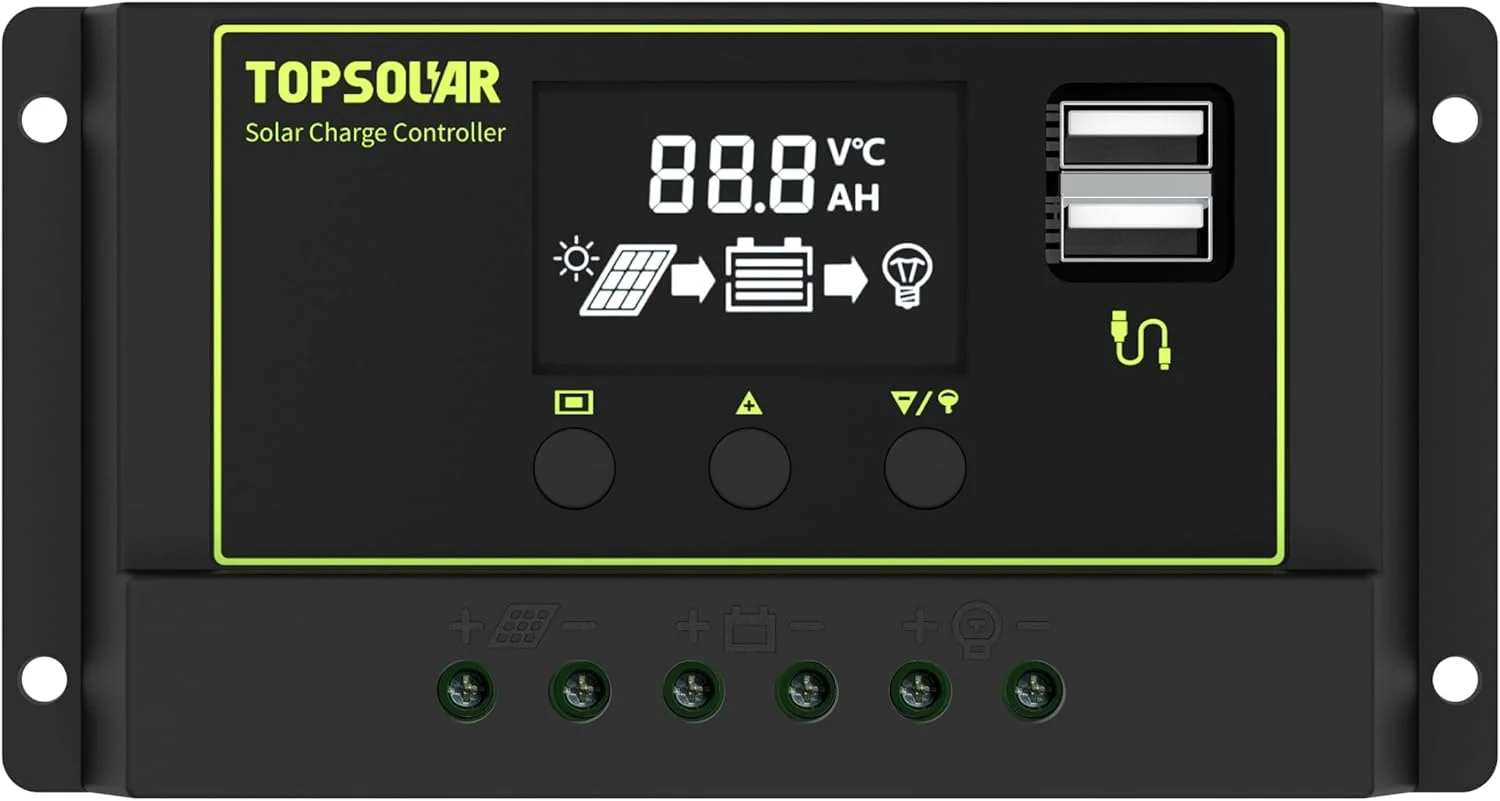

- Integrated Charge Controller: The included 30A Pulse Width Modulation (PWM) charge controller supports both 12V and 24V systems. Its critical functions include over-charge, over-voltage, discharge, and short-circuit protection, alongside reversed polarity safeguarding, ensuring robust battery health and system integrity.

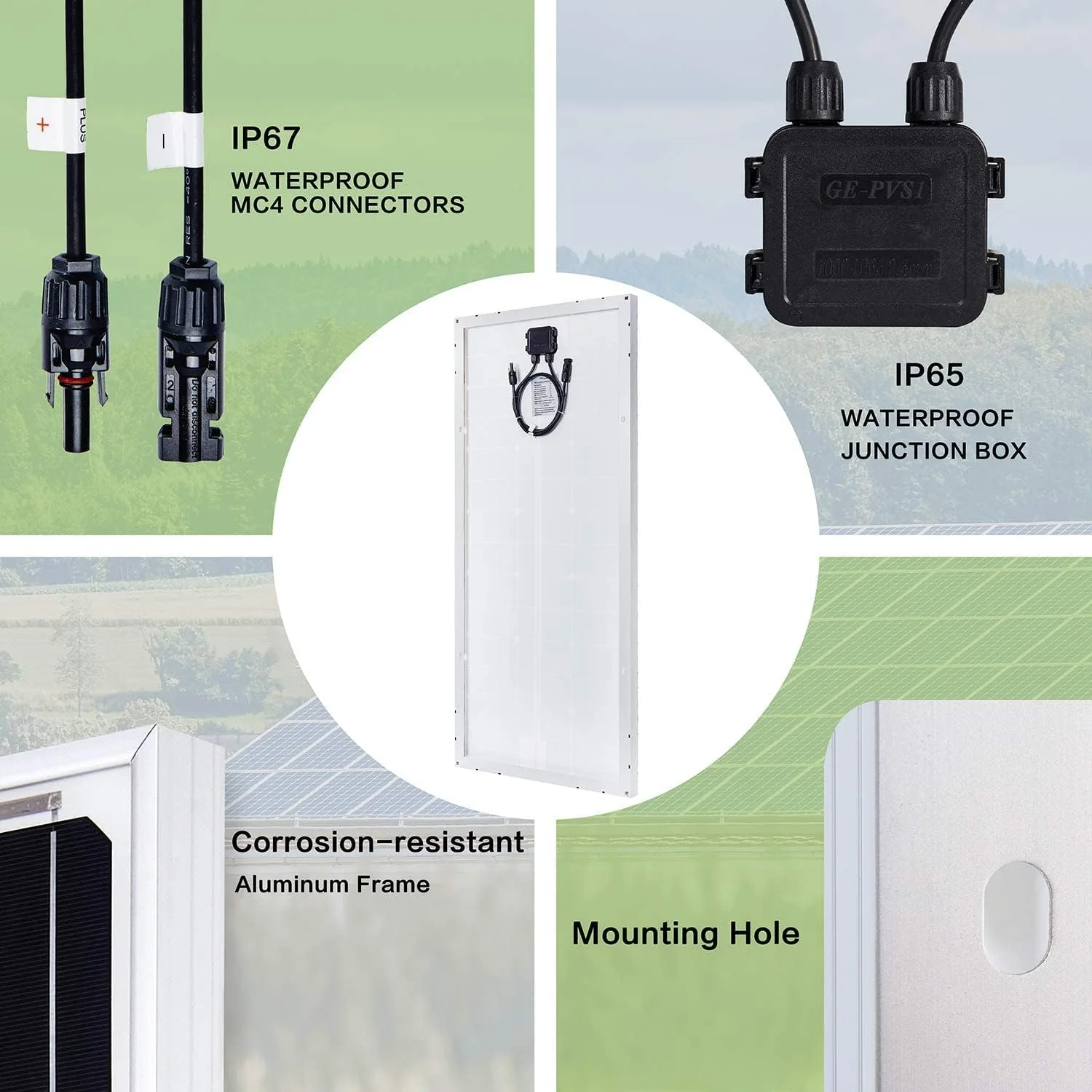

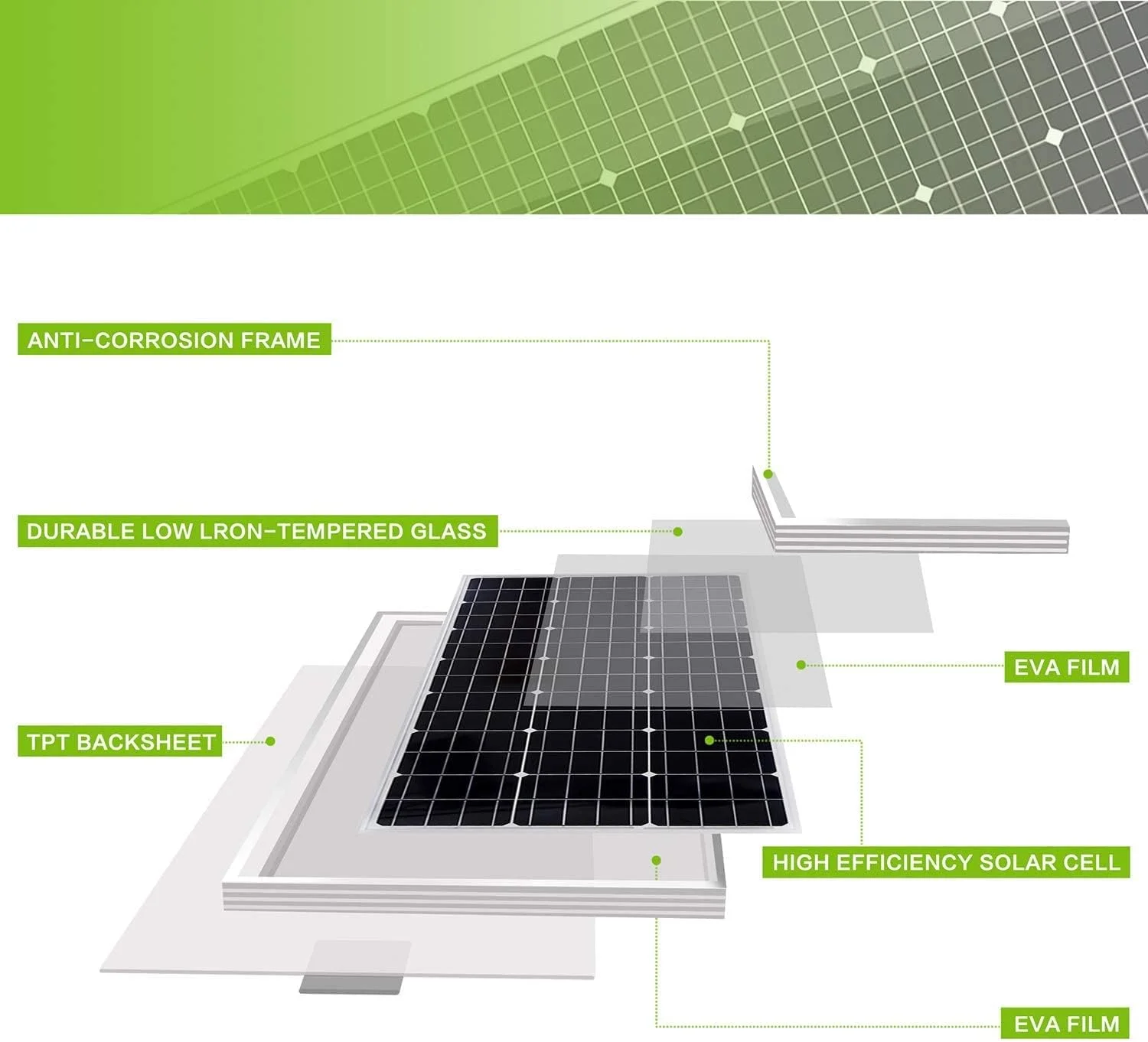

- Structural Durability: Engineered to withstand significant environmental stressors, the panel is rated for 2400 Pascal (Pa) wind loads and 5400 Pa snow loads. Its construction features a robust tempered glass surface and an anodized aluminum frame, guaranteeing decades of outdoor operational longevity.

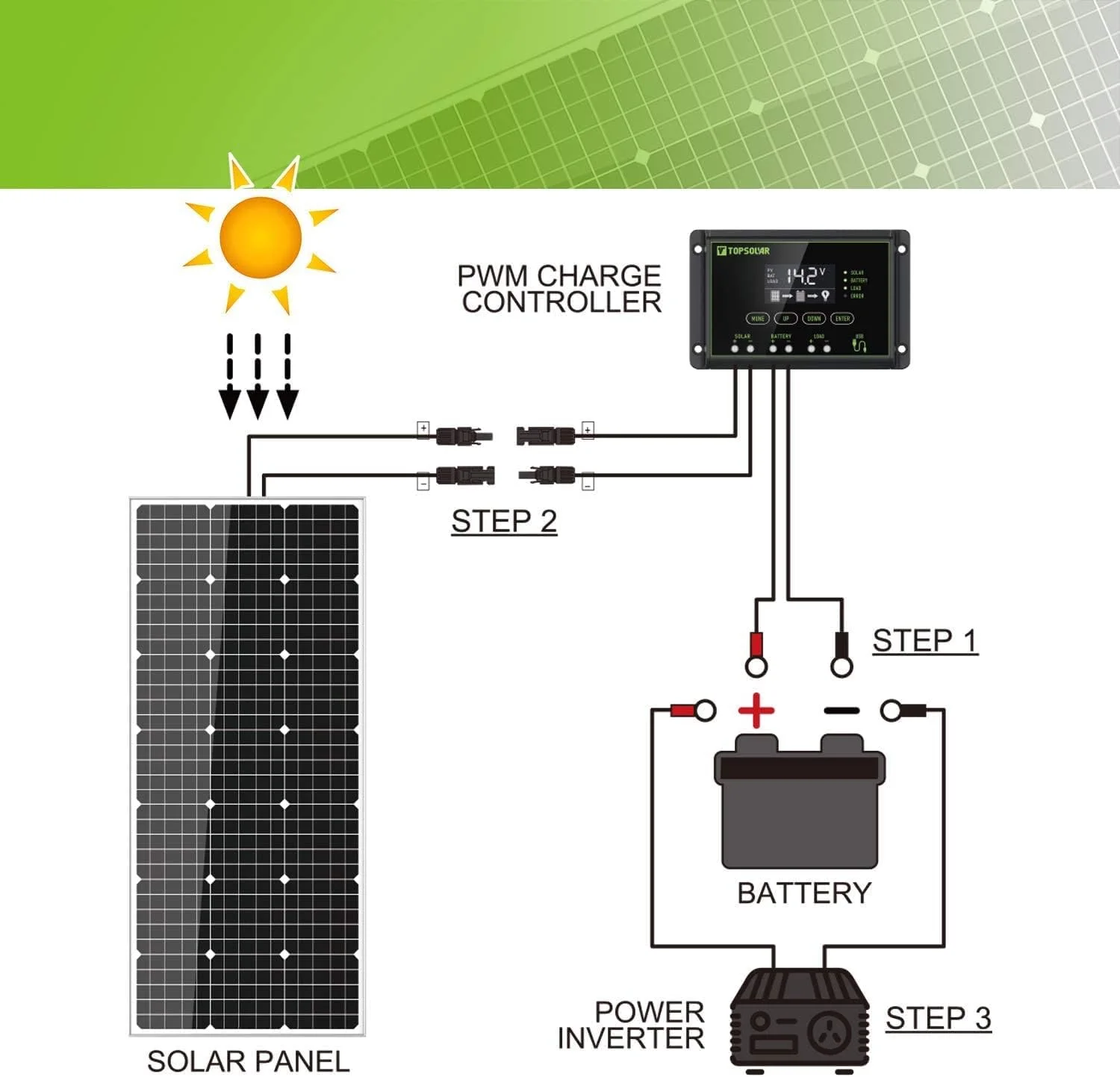

- System Scalability: The accompanying 30A PWM controller allows for system expansion up to 260W in a 12V configuration or 520W in a 24V configuration, offering flexibility for growing power demands.

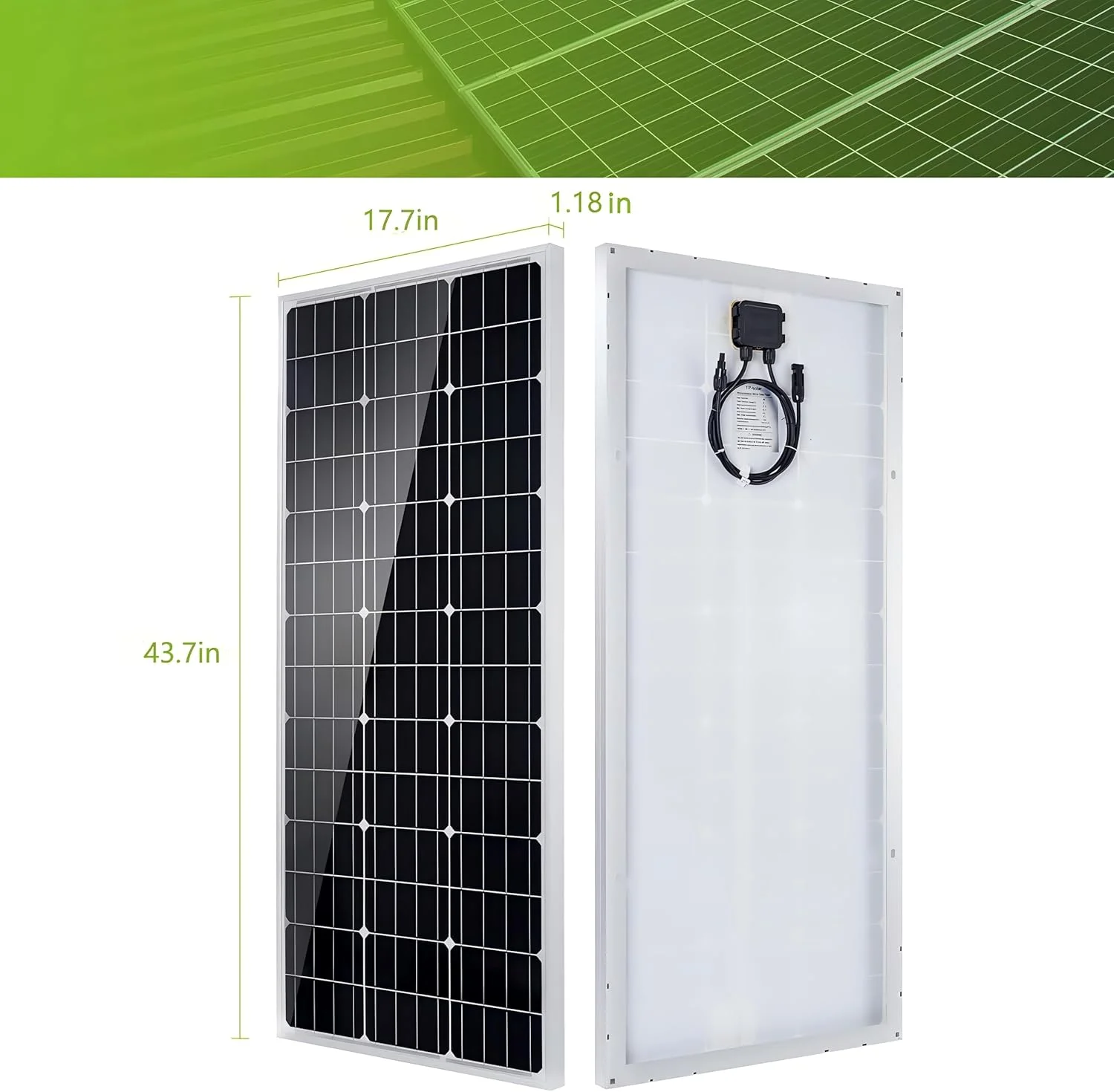

- Physical Dimensions: Measuring 1160x510x35mm (45.6x20x1.37 inches) and weighing 15.84 lbs, this panel is designed for relatively compact and manageable deployment.
Real-world Reliability
During grid outages, this kit provides a foundational power source for critical low-power 12V systems, such as security camera charge maintenance, basic LED lighting, or small communication devices. Its inherent resilience against extreme weather, evidenced by high wind and snow load ratings, coupled with its durable tempered glass and aluminum frame, ensures sustained operation and minimizes maintenance requirements in challenging outdoor environments.
Who is this for?

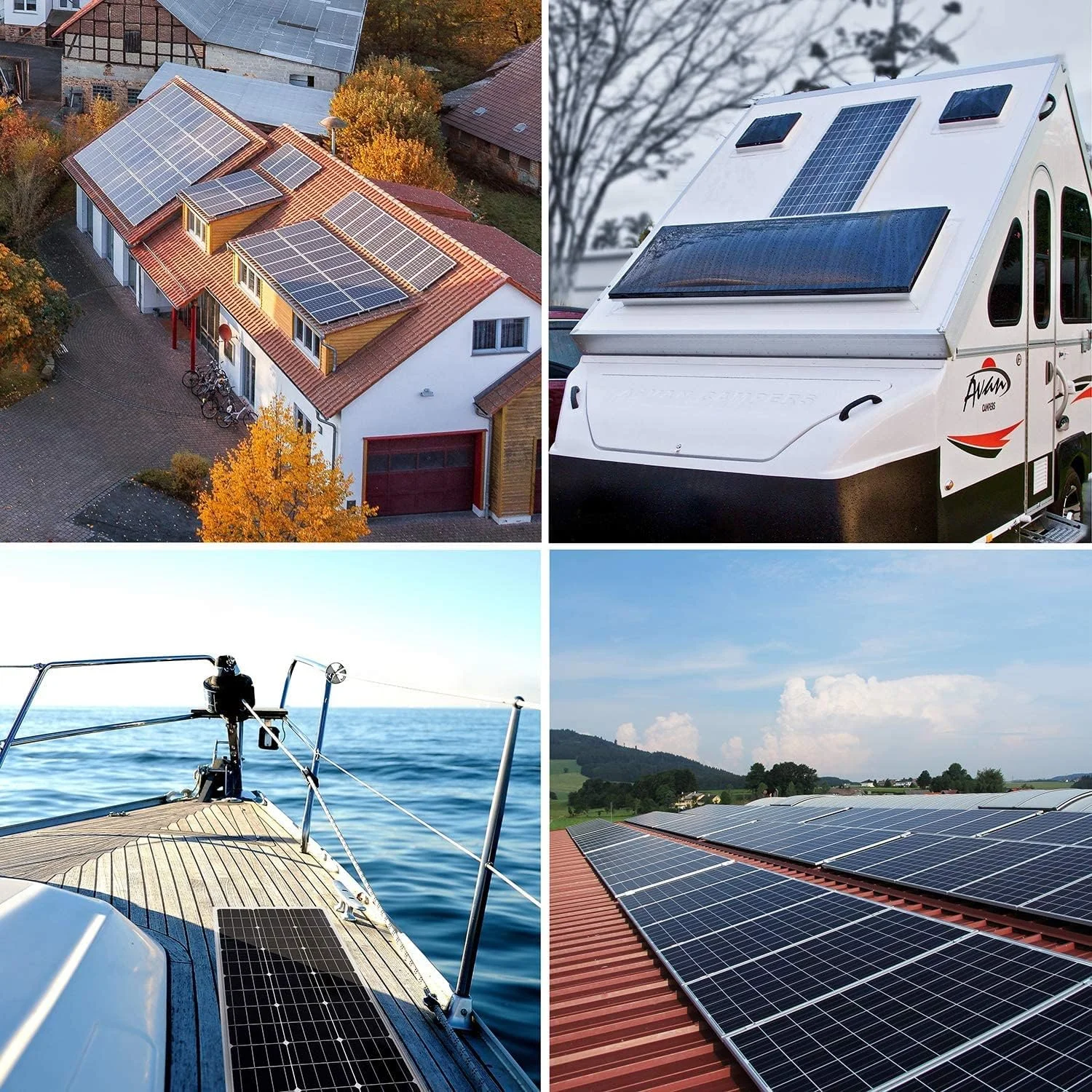

This kit is ideal for RV owners, cabin dwellers, marine applications, and individuals seeking supplemental charging for remote 12V battery banks.
